Philips
BGP291 LED84-4S/730 II DM32 MSP SRG10 H0
Part number3501168HS code9405.11
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

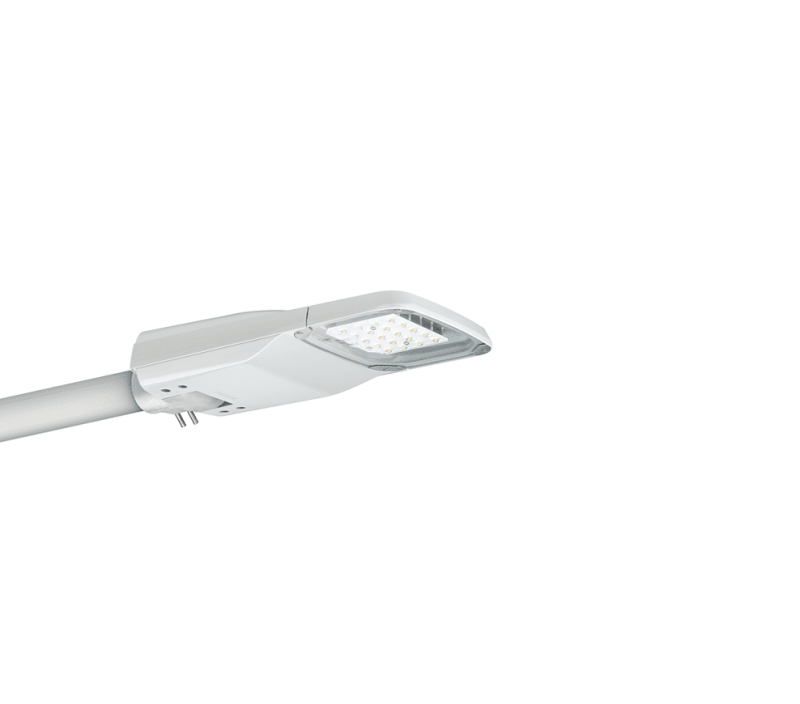

Philips 3501168 BGP291 LED84-4S/730 II DM32 MSP SRG10 H0.
Technical Specifications
- Manufacturer part number (MPN)
- 3501168
- Sales unit
- pcs
- El-nummer (NO)
- 3501168
- ETIM class
- SC000062
- Mounting method
- Side entry
- Protection class according to IEC 61140
- II
- Width
- 234 mm
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- Connection type
- Push-in clamp
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 70-79
- Cable length
- 10 m
- With light sensor
- No
- Number of poles
- 3
- Length
- 520 mm
- Height/depth
- 95 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Material cover
- Glass transparent
- Impact strength
- IK08
- With connection cable
- Yes
- Degree of protection (IP)
- IP66
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Adjustable optics
- No
- Max. system power
- 59 W
- Rated luminous flux according to IEC 62722-2-1
- 6972 lm
- Colour of light
- White
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Ending
- Colour consistency (McAdam ellipse)
- SDCM5
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- Yes
- Light distributor
- Diffuser lens/optic/panel
- Luminaire efficacy
- 118 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Exchangeable control gear
- Yes
- Power factor
- 0.98
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.11
Cross References
- 8719514708006
- El-nr 3501168
Product Documentation
Document preview: BGP291 LED84-4S/730 II DM32 MSP SRG10 H0 (3501168) — Specification sheet
