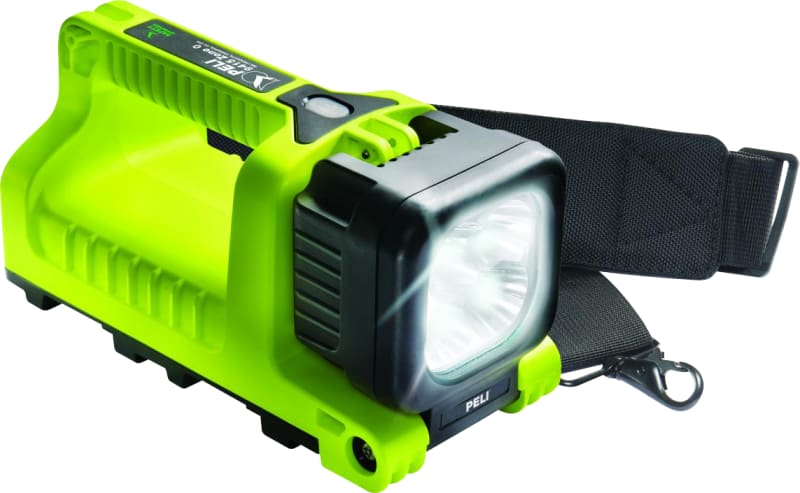

Peli 9415Z0 Rechargeable LED Ex Zone 0 Lantern

Peli 9415Z0 is a rechargeable LED area lantern certified for use in explosive atmospheres of gas zones 0, 1 and 2 and dust zones 20, 21 and 22, with temperature class T4. The unit measures 222 mm long by 100 mm diameter, delivers 530 lm from a non-replaceable LED, and carries an IPX4 ingress rating with class II protection. Typical duties include process plants, tank inspection, marine and offshore intrinsically safe portable lighting.

Manufacturer part number (MPN)

4149415241

EAN / GTIN

0019428174484

Sales unit

pcs

Protection class according to IEC 61140

II

Width

109 mm

With connection cord and plug

No

Suitable for lamp power

1 W

Type of control gear

Not required

Diameter

100 mm

With switch

Yes

With CEE-plug

No

Length

222 mm

Height/depth

100 mm

Temperature class according to directive 94/9/EC

T4

Lamp type

LED not exchangeable

Nominal voltage

230 V

Degree of protection (IP)

IPX4

With protective cover

No

For Ex-zone gas

0, 1, 2

With light source

Yes

Suitable for number of light sources

1

For Ex-zone dust

20, 21, 22

Colour temperature

1 K

Max. system power

1 W

Rated luminous flux according to IEC 62722-2-1

530 lm

Colour of light

White

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Country of origin

United States

HS Code

8513.10

• EAN 0019428174484
• SAP 1200003794
• Code 8469711
