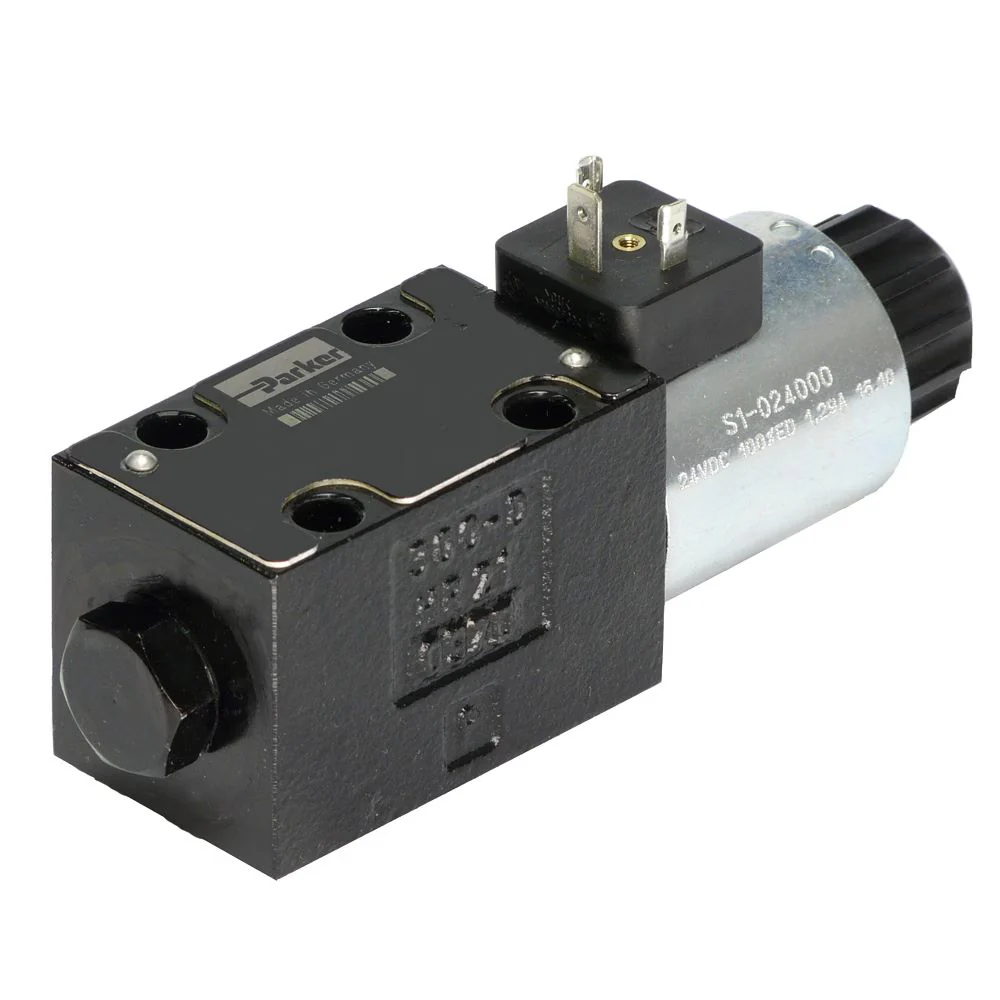

Parker D1VW020HNJW D1VW D03 spool H
Pricing
Request a quote
We reply within 24 hours
Product Description
Parker Hannifin D1VW020HNJW D1VW D03 spool H. Parker Hannifin OEM. Parker Hannifin directional valves for industrial and marine service. Installed in hydraulic power packs, deck machinery, mobile equipment and industrial press applications.
Technical Specifications
- Approval
- CE, UL, cUL, ATEX II 2G Ex db IIB T4 Gb (Ex variants), IECEx, DNV, ABS, LR Standards: IECEx, ISO 4401, NG6/NG10/NG16 Approvals: DNV, ABS, LR, CE HS code: 8412.21 Marking: Standard Seal material: NBR Spool Position: 2 positions, spring offset in position a, operated in position b Operation Type: Direct Maximum Flow Rate: 70 L/min Input Voltage: 24 VDC Connection Type: Connector as per EN 175301-803 Solenoid Option: Standard Spool Code: 020 Mounting Type: Subplate Actuation Type: Solenoid Product Series: Directional Control Valve Weight: 1.5 kg Maximum Operating Pressure: 350 bar Maximum Operating Temperature: 60 °C minimum Operating Temperature: -20 °C For Fluid Type: Water-Glycol Function: 3-Way Port Connection: NG06 / CETOP 03 Mounting Position: Unrestricted, Preferably Horizontal Body material: Cast Iron
Standards & Compliance
- Classification / Approval
- CE, UL, cUL, ATEX II 2G Ex db IIB T4 Gb (Ex variants), IECEx, DNV, ABS, LR
- HS Code
- 8412.21
Compatibility & Fitment
Fits Parker D1VW series directional control valves, NG6 / CETOP 3 / D03 interface, 24VDC solenoid.
