Omron

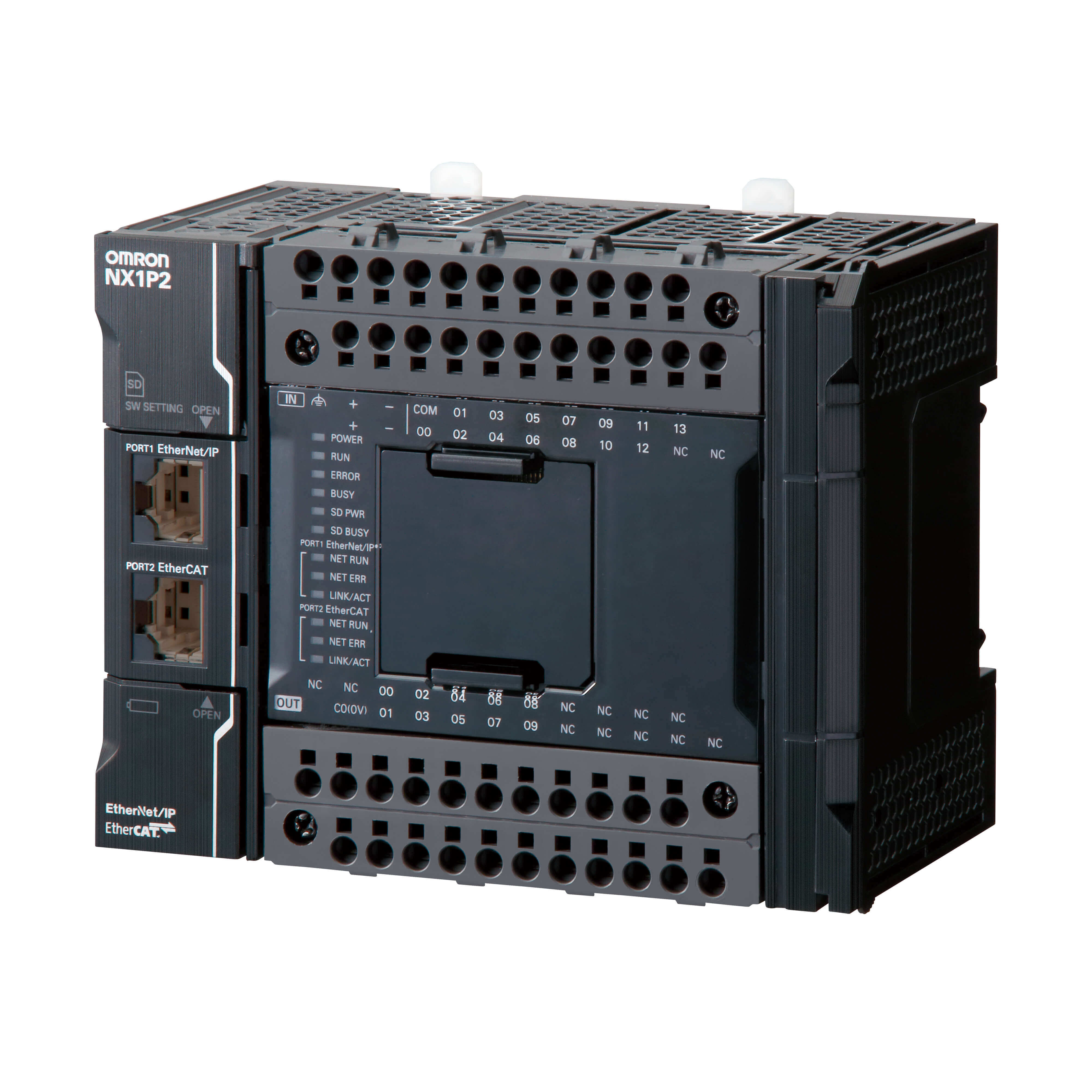

Omron NX1P motion controller
Part numberNX1P2-9B24DT1EAN / GTIN4549734556729HS code8471.41
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron NX1P motion controller (NX1P2-9B24DT1). Omron NX1P2-9B24DT1, motion controller, motion & drives / motion controllers. Product type Motion controller. Series Omron NX1P. Product family Motion & Drives / Motion Controllers. Primary task cycle time 4 ms. Program memory 1 MB. Variables memory 2 MB.
Technical Specifications
- Manufacturer part number (MPN)
- NX1P2-9B24DT1
- EAN / GTIN
- 4549734556729
- Sales unit
- pcs
- Product type
- Motion controller
- Series
- Omron NX1P
- Product family
- Motion & Drives / Motion Controllers
- Primary task cycle time
- 4 ms
- Program memory
- 1 MB
- Variables memory
- 2 MB
- Max. number of PTP axes
- 2
- Number of digital inputs
- 14
- Input type
- PNP/NPN
- Number of digital outputs
- 10
- Output type
- PNP
- Number of serial option boards
- 1
- Max. number of expansion units
- 8
- Communication port(s)
- EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
- Communication option(s)
- Serial RS-232C, Serial RS-422, Serial RS-485
- Real-time clock
- TRUE
- Supply voltage DC
- 20.4-28.8 V
- Product Height (unpacked)
- 100 mm
- Product Width (unpacked)
- 130 mm
- Product Depth (unpacked)
- 71 mm
- Product Weight (unpacked)
- 590 g
- Width
- 130 mm
- Model
- Compact
- Height
- 100 mm
- Depth
- 71 mm
- With display
- No
- Suitable for safety functions
- No
- Voltage type (supply voltage)
- DC
- Type of memory
- FLASH
- Memory size
- 3000 kByte
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces other
- 2
- With optical interface
- No
- Additional program memory possible
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Redundancy
- No
- Suitable for rail mounting
- Yes
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- System accessory
- No
- Appendant operation agent (Ex ia)
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Wall mounting/direct mounting
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- IO link master
- No
- Performance level according to EN ISO 13849-1
- Level a
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- SIL according to IEC 61508
- None
- Supporting protocol for IEC 61850 Ethernet
- No
- Supporting protocol for DNP3
- No
- Supporting protocol for IEC 60870
- No
- Supporting protocol for EtherCAT
- Yes
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8471.41
Cross References
- EAN 4549734556729
- SAP 1200793866
- Code 84004983
Product Documentation
Document preview: Omron NX1P motion controller (NX1P2-9B24DT1) — Specification sheet
