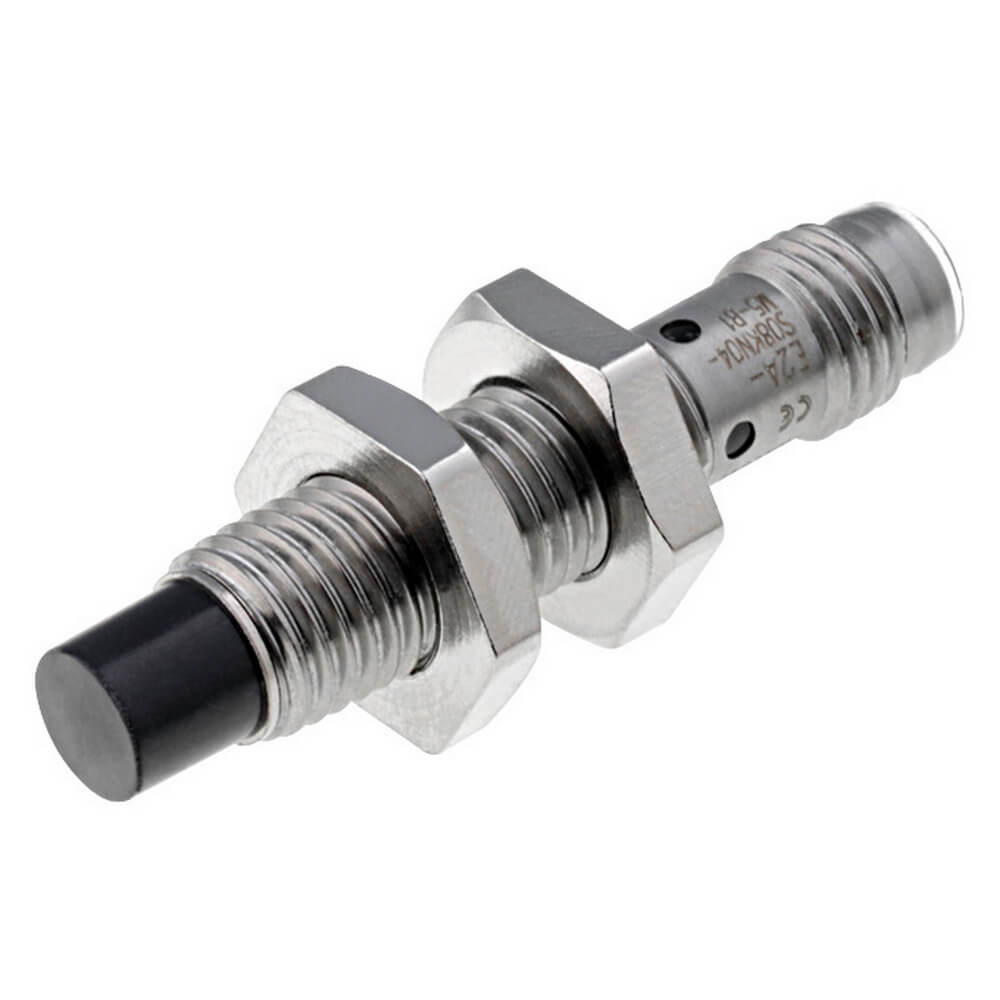

Omron E2A-S inductive sensor, sensing distance 4 mm, M8
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E2A-S inductive sensor, sensing distance 4 mm, M8 (E2A-S08KN04-M5-B1). Omron E2A-S08KN04-M5-B1, inductive sensor, sensing / inductive sensors. Product type Inductive sensor. Series Omron E2A-S. Product family Sensing / Inductive Sensors. Size M8. Mounting type Non-flush. Sensing distance 4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- E2A-S08KN04-M5-B1
- EAN / GTIN
- 4547648149273
- Sales unit
- pcs
- Product type
- Inductive sensor
- Series
- Omron E2A-S
- Product family
- Sensing / Inductive Sensors
- Size
- M8
- Mounting type
- Non-flush
- Sensing distance
- 4 mm
- Output type
- PNP
- Operation mode
- NO
- Connection method
- Connector M8 - 3 pin
- Material housing
- Stainless steel
- Overall length of sensor
- 39 mm
- Thread length
- 21 mm
- Degree of protection (IP)
- IP67/IP69K
- Width sensor
- 8 mm
- Height of sensor
- 8 mm
- Length of sensor
- 39 mm
- Diameter sensor
- 8 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 4 mm
- Suitable for safety functions
- No
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Connector M8
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Cascadable
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Supply voltage
- 12–24 V
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- DC
- Switching frequency
- 1000 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Metal
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4547648149273
- SAP 1000158136
- Code 8198289
