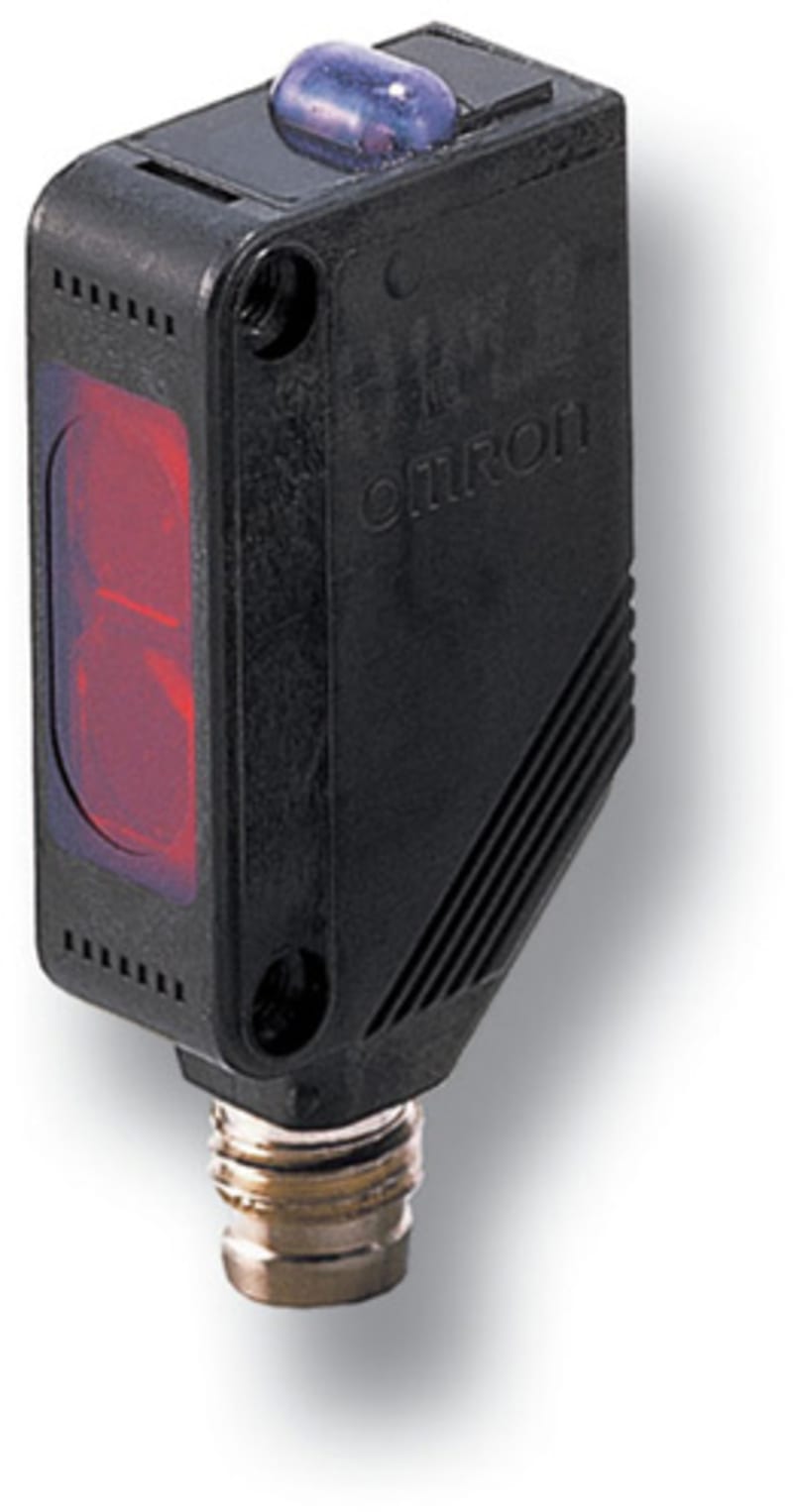

Omron E3ZLS66 Photoelectric Sensor NPN, 200 mm Sensing Distance, Background Fade-Out

Omron E3ZLS66 is a diffuse-reflective photoelectric sensor with background fade-out (triangulation), NPN output, and a sensing range adjustable from 20 to 200 mm. Electrical connection is via M8 connector on a 3-wire DC supply, with 100 mA maximum output current and manual sensitivity adjustment. The 10.8 by 31 by 20 mm cuboid housing includes light/dark switching, a normally-open contact function, and one signalling output; no communication interface is fitted. A mounting bracket is required for installation.

Manufacturer part number (MPN)

E3ZLS66

EAN / GTIN

4536854844812

Sales unit

pcs

Output type

NPN

Sensing distance

200 mm

Adjustment range

20–200 mm

Triangulation

Background fade-out

Pre failure notice

No

With time function

No

Rated switching distance

200 mm

Max. switching distance

200 mm

Max. output current

100 mA

With reflector

No

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output 4 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

With other analogue output

No

Setting procedure

Manual adjustment

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Number of semiconductor outputs with signalling function

1

Type of electric connection

Connector M8

Type of switching output

NPN

Type of switch function

Normally open contact (NO)

Operation agent-safety class

Safety class 0

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Width sensor

10.8 mm

Height of sensor

31 mm

Length of sensor

20 mm

Sensing mode

Light-/dark switching

Material of optical surface

Plastic

Housing material

Plastic

Max. output current at protected output

100 mA

Min. reflector distance

0 mm

Ambient temperature

-25–55 °C

Response time

1 ms

Switching frequency

1000 Hz

Type of safety according to IEC 61496-1

1

Rated control supply voltage DC

10–30 V

Voltage type

DC

With monitoring function downstream switching devices

No

Laser protection class

None

Wavelength of the sensor

680 nm

Type of light

Polarity free red light

AWG-number

24

Material of cable sheath

Polyvinyl chloride (PVC)

With restart blockage

No

Suitable for safety functions

No

Degree of protection (IP)

IP67

Country of origin

China

HS Code

8536.49
