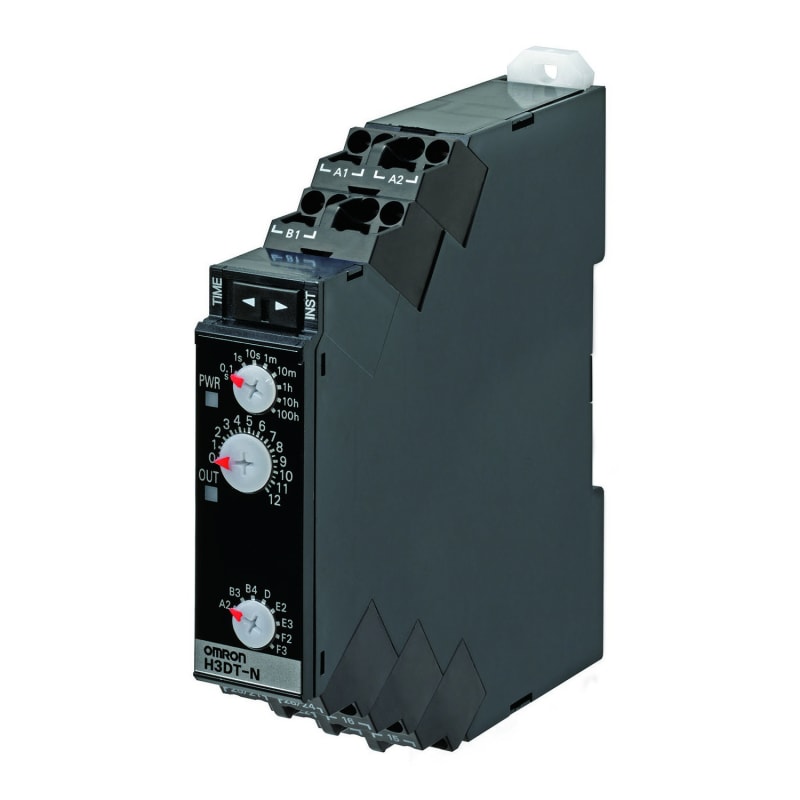

TIME Relay Multi 24-240VAC/DC

Omron H3DT-N2 24-240VAC/DC.

Manufacturer part number (MPN)

H3DT-N2 24-240VAC/DC

EAN / GTIN

4548583773318

HS code

8536.90

Sales unit

pcs

Voltage

24-240 V AC

Degree of protection (IP)

IP30

Operating voltage AC 50 Hz

0–250 V

Operating voltage AC 60 Hz

0–250 V

Operating voltage DC

0–30 V

Suitable for front mounting

No

Complete with socket

No

Relay technology category according to IEC 61810-7

RT I

Voltage type (operating voltage)

AC/DC

Type of electric connection

Spring clamp connection

Function delay-on energization

Yes

Function delay on de-energization

No

Function floating contact on energization

Yes

Function floating contact on de-energization

No

Function star-delta

No

Function pulse shaping

No

Function flashing, starting with pause, fixed time

No

Function flashing, starting with pulse, fixed time

No

Clock function, starting with pause, variable

No

Clock function, starting with pulse, variable

No

With plug-in socket

No

Remote operation possible

No

Suitable as remote control

No

Pluggable on auxiliary contact block

No

Rated control supply voltage AC 50 Hz

24–240 V

Rated control supply voltage AC 60 Hz

24–240 V

Rated control supply voltage DC

24–240 V

Voltage type for actuating

AC/DC

Nominal current

5 A

Time range

0.1–4320000 s

Number of outputs, undelayed, normally closed contact

1

Number of outputs, undelayed, normally open contact

1

Number of outputs, undelayed, change-over contact

1

Number of outputs, delayed, normally closed contact

2

Number of outputs, delayed, normally open contact

2

Number of outputs, delayed, change-over contact

2

Outputs, reversible delayed/undelayed

Yes

With semiconductor output

No

Suitable for DIN rail (top hat rail) mounting

Yes

Width

17.5 mm

Height

90 mm

Depth

90 mm

Country of origin

China

HS Code

8536.90
