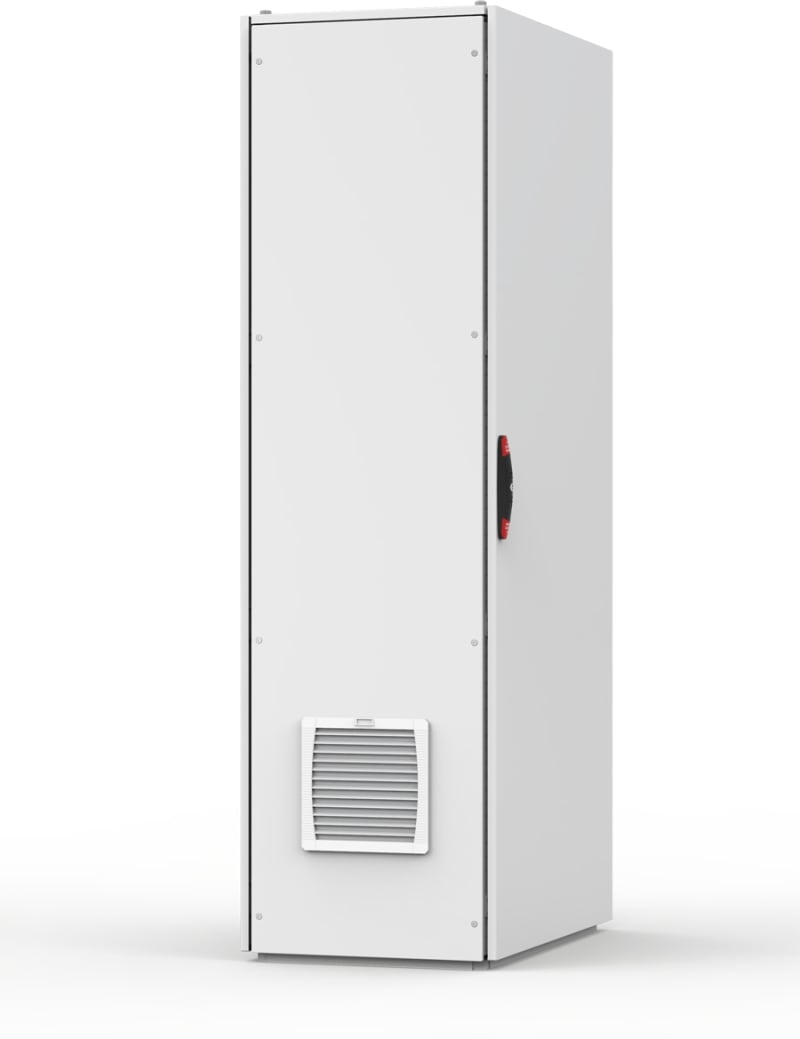

nVent HOFFMAN EFP700-115R5 Filter Fan Air flow 950 M3/h, 115V, Outdoor, IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EFP700-115R5 — Filter Fan Air flow 950 m3/h, 115V, Outdoor, IP55. This outdoor filter fan, EEP, is easy to install, downtime is avoided, and ideal in indoor and outdoor environments.
Technical Specifications
- Manufacturer part number (MPN)
- EFP700-115R5
- EAN / GTIN
- 8713574161573
- Sales unit
- pcs
- Air flow
- 950 m³/h
- EL-number (NO)
- 4913334
- Airflow volume, with filter
- 570/625m³/h
- Aiflow volume, without filter
- 925/950m³/h
- Nominal voltage
- 115 V
- Height
- 320 mm (12.6 in)
- Width
- 320 mm (12.6 in)
- Depth
- 157 mm (6.18 in)
- Cutout size
- 11.46 x 11.46in / 291 x 291mm
- Nominal current
- 1.23/1.71A
- Protection rating
- IP55; NEMA Type 12
- Material
- Thermoplastic
- Finish
- Smooth
- Color
- Light Gray
- Color code
- RAL 7035
- Frequency
- 50/60 HzHz
- Connection type
- Spring Type
- Noise level
- 69dB(A)
- Weight
- 4.55 kg (10.03 lb)
- UPC
- 783510476526
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP55
- With filter
- Yes
- Rated power
- 195 W
- Roof ventilator
- No
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 950 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 60 Hz
- 103.5–126.5 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 8713574161573
- SAP 1000350083
- Code 81289479
Product Documentation
