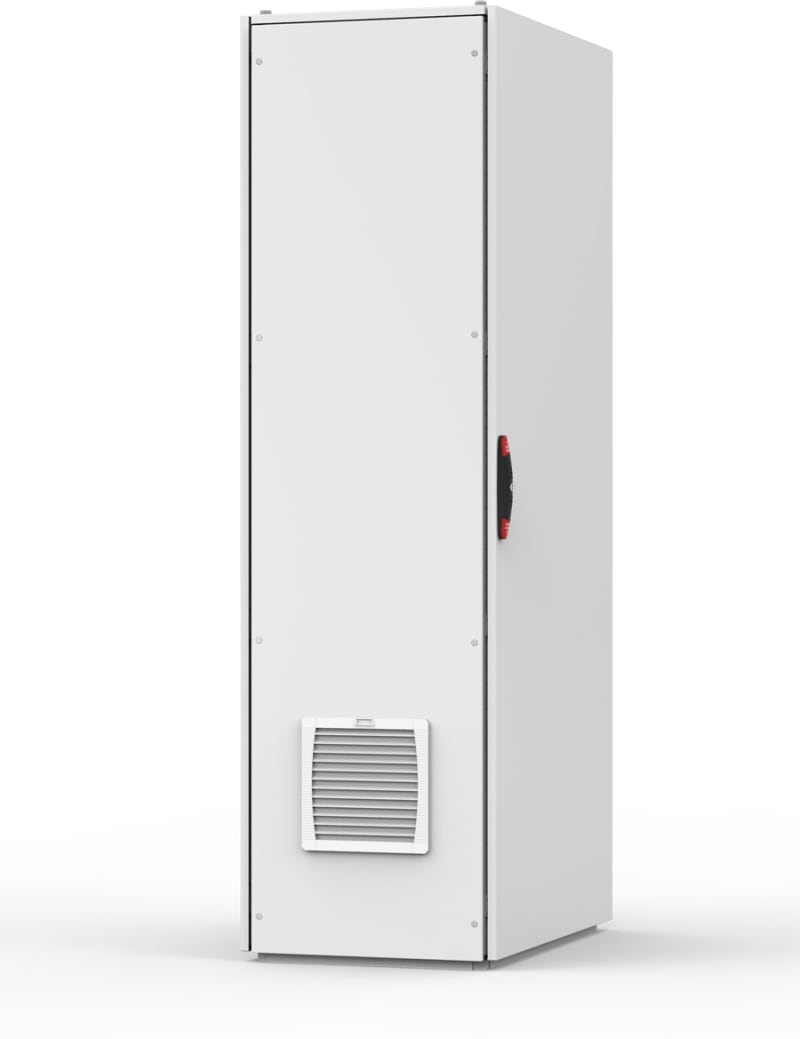

nVent HOFFMAN EFP600-115R5 Filter Fan Air flow 785 M3/h, 115V, Outdoor, IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EFP600-115R5 — Filter Fan Air flow 785 m3/h, 115V, Outdoor, IP55. This outdoor filter fan, EEP, is easy to install, downtime is avoided, and ideal in indoor and outdoor environments.
Technical Specifications
- Manufacturer part number (MPN)
- EFP600-115R5
- EAN / GTIN
- 8713574132795
- Sales unit
- pcs
- Air flow
- 785 m³/h
- EL-number (NO)
- 4913332
- Airflow volume, with filter
- 490/501m³/h
- Aiflow volume, without filter
- 770/785m³/h
- Nominal voltage
- 115 V
- Height
- 320 mm (12.6 in)
- Width
- 320 mm (12.6 in)
- Depth
- 157 mm (6.18 in)
- Cutout size
- 11.46 x 11.46in / 291 x 291mm
- Nominal current
- 0.96/1.40A
- Protection rating
- IP55; NEMA Type 12
- Material
- Thermoplastic
- Finish
- Smooth
- Color
- Light Gray
- Color code
- RAL 7035
- Frequency
- 50/60 HzHz
- Connection type
- Spring Type
- Noise level
- 64dB(A)
- Weight
- 4.1 kg (9.04 lb)
- UPC
- 783510476465
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP55
- With filter
- Yes
- Rated power
- 160 W
- Roof ventilator
- No
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 785 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 60 Hz
- 103.5–126.5 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 8713574132795
- SAP 1000350081
- Code 81126337
Product Documentation
More from nVent HOFFMAN
nVent HOFFMAN
nVent HOFFMAN MPGDA01 Depth adjust kit MP console
nVent HOFFMAN
nVent HOFFMAN SSTB305012 304 Stainless Junction Box 300×500×120 mm IP66
nVent HOFFMAN
Spacer Bolts M8, 100 mm
AMTE8100
nVent HOFFMAN
nVent HOFFMAN HMP1222E Galvanised Steel Mounting Plate 122×220 mm
nVent HOFFMAN
nVent HOFFMAN UFCP4301 Inner cover plate, 415X315, Polyester
nVent HOFFMAN
nVent HOFFMAN S1MWF Syspend 180-Max Wall Flange, 4.53X5.09X5.09, Black, Aluminum
nVent HOFFMAN
nVent HOFFMAN LHC527 Locking System for Lift Handles, LHC, 37X23X41MM, Zinc Plt, Steel, Triangle 8mm
nVent HOFFMAN

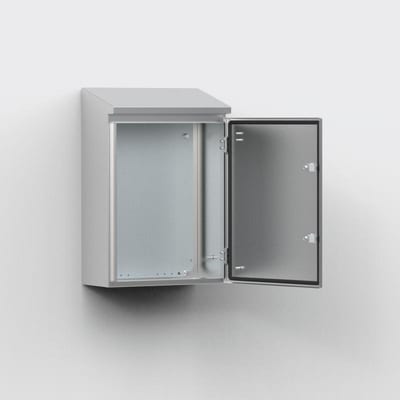

nVent HOFFMAN AFS06042 304 Stainless Wall-Mounted Enclosure 600×400×210 mm IP66
