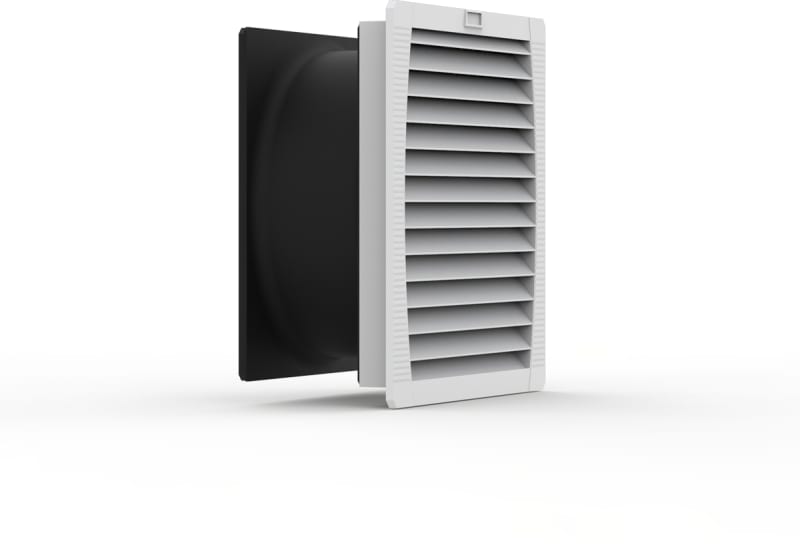

nVent HOFFMAN EFE500R5 Filter Fan EMC 480 M3/h, 230V, IP54
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EFE500R5 — Filter Fan EMC 480 m3/h, 230V, IP54. This EMC vertical filter fan, EFE, with a IP 54 protection degree, is easy to install thanks to its click-in feature.
Technical Specifications
- Manufacturer part number (MPN)
- EFE500R5
- EAN / GTIN
- 8713574132061
- Sales unit
- pcs
- Air flow
- 480 m³/h
- EL-number (NO)
- 4913308
- Height
- 320 mm (12.6 in)
- Width
- 320 mm (12.6 in)
- Depth
- 155 mm (6.1 in)
- Power @ 50 hz
- 80 W
- Power @ 60 hz
- 100 W
- Airflow volume, with filter
- 370/370m³/h
- Aiflow volume, without filter
- 480/480m³/h
- Lifespan, L10 @ 40 c
- 40000h
- Enclosure cutout
- 11.5 x 11.5in / 292 x 292mm
- Connection type
- Spring Type
- Nominal current
- 0.35/0.45A
- Material
- Plastic
- Finish
- Textured
- Color
- Light Gray
- Nominal voltage
- 230 V
- Frequency
- 50/60 HzHz
- Filter efficiency
- 90 %
- Noise level
- 54dB
- Protection fuse
- 6 A
- Protection rating
- IP54
- Weight
- 3.85 kg
- UPC
- 783510475772
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- Yes
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 115 W
- Roof ventilator
- No
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 480 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 230 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 8713574132061
- SAP 1000725455
- Code 8291852
Product Documentation
