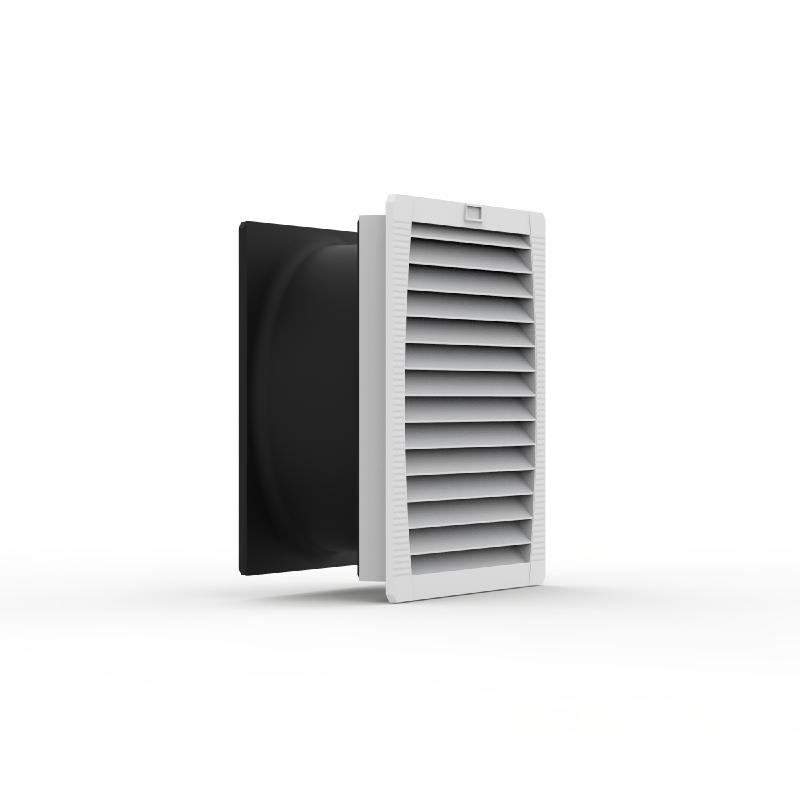

nVent HOFFMAN EFE220R5 Filter Fan EMC 98 M3/h, 230V, IP54
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EFE220R5 — Filter Fan EMC 98 m3/h, 230V, IP54. This EMC vertical filter fan, EFE, with a IP 54 protection degree, is easy to install thanks to its click-in feature.
Technical Specifications
- Manufacturer part number (MPN)
- EFE220R5
- EAN / GTIN
- 8713574132979
- Sales unit
- pcs
- Air flow
- 98 m³/h
- EL-number (NO)
- 4913305
- Height
- 203 mm (7.99 in)
- Width
- 203 mm (7.99 in)
- Depth
- 89 mm (3.5 in)
- Power @ 50 hz
- 19 W
- Power @ 60 hz
- 18 W
- Airflow volume, with filter
- 82/93m³/h
- Aiflow volume, without filter
- 110/125m³/h
- Lifespan, L10 @ 40 c
- 37500h
- Enclosure cutout
- 4.98 x 4.98in / 126.5 x 126.5mm
- Connection type
- Terminal Strip
- Nominal current
- 0.12/0.18A
- Material
- Plastic
- Finish
- Textured
- Color
- Light Gray
- Nominal voltage
- 230 V
- Frequency
- 50/60 HzHz
- Filter efficiency
- 90 %
- Noise level
- 44dB
- Protection fuse
- 6 A
- Protection rating
- IP54
- Weight
- 1.05 kg
- UPC
- 783510475673
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- Yes
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 19 W
- Roof ventilator
- No
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 110 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 230 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 8713574132979
- SAP 1000725452
- Code 81195236
Product Documentation
More from nVent HOFFMAN
nVent HOFFMAN
nVent HOFFMAN S2MACB Syspend 281-Max Angle Coupling Tilted Back, 8.15X4.33X4.33, Black, Aluminum
nVent HOFFMAN
nVent HOFFMAN EFM250-300 Filter mat, IP54
nVent HOFFMAN
nVent HOFFMAN CAC3842 Cable Clamps, CAC, Mild Steel, 38-42mm
nVent HOFFMAN
nVent HOFFMAN SHTH0808 Telescopic Shelf Hd, SHTH, 50X670X750MM, Zinc Plated, Mild Steel
nVent HOFFMAN
nVent HOFFMAN HALP162609GE Aluminium Junction Box 160×260×90 mm IP66
nVent HOFFMAN
nVent HOFFMAN AVB0800 Vertical Mounting Profiles, AVB, 775X86X21MM, Zinc Plated, Mild Steel
nVent HOFFMAN

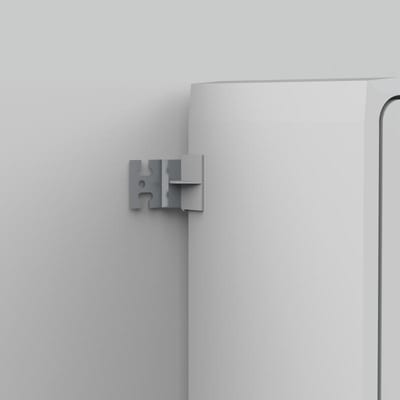

nVent HOFFMAN UWB02 Wall bracket SS, icw rainhood
nVent HOFFMAN

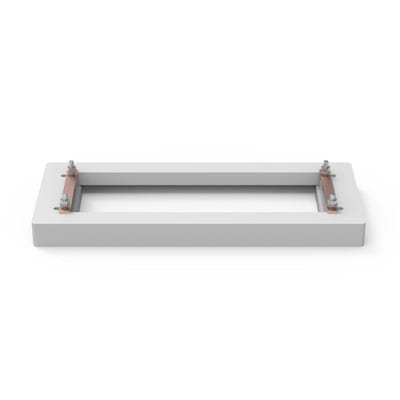

nVent HOFFMAN UAF7532 Adaptor frame, 750X320
