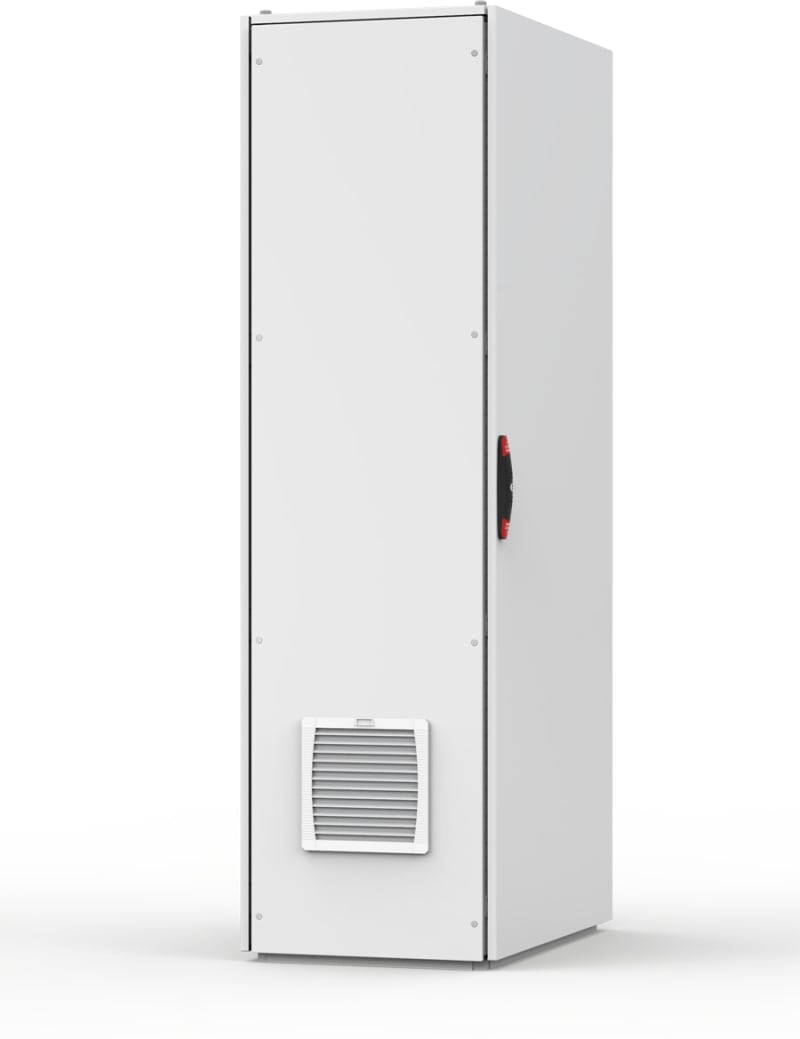

nVent HOFFMAN EF500-115R5 Filter Fan Air flow 480 M3/h, 115V, 50/60Hz, IP54
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EF500-115R5 — Filter Fan Air flow 480 m3/h, 115V, 50/60HZ, IP54. Filter fan for forced ventilation.
Technical Specifications
- Manufacturer part number (MPN)
- EF500-115R5
- EAN / GTIN
- 8713574132597
- Sales unit
- pcs
- Air flow
- 480 m³/h
- EL-number (NO)
- 4913283
- Aiflow volume, without filter
- 480/480m³/h
- Airflow volume, with filter
- 370/370m³/h
- Height
- 320 mm (12.6 in)
- Width
- 320 mm (12.6 in)
- Depth
- 145 mm (5.72 in)
- Cutout size
- 11.46 x 11.46in / 291 x 291mm
- Voltage ac
- 115 V
- Protection rating
- IP54; NEMA Type 12
- Material
- Thermoplastic
- Finish
- Smooth
- Color
- Light Gray
- Color code
- RAL 7035
- Nominal current
- 0.66/0.80A
- Connection type
- Spring Type
- Noise level
- 52dB(A)
- Weight
- 3.85 kg (8.49 lb)
- UPC
- 783510474867
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 75 W
- Roof ventilator
- No
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 480 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 103.5–126.5 V
- Operating voltage AC 60 Hz
- 103.5–126.5 V
- Operating voltage DC
- 103.5–126.5 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 8713574132597
- SAP 1000350062
- Code 8391883
Product Documentation
More from nVent HOFFMAN
nVent HOFFMAN
19" profiles, 1200 (AVP1200)
nVent HOFFMAN
nVent HOFFMAN S2MRB Syspend 281-Max Rotary Base, 5.00X5.00X6.69, Black, Aluminum
nVent HOFFMAN
Vent. bottom plate, 800X800
CVB0808
nVent HOFFMAN
nVent HOFFMAN DR352505E Din rail 35X260, OABP/ OPCP
nVent HOFFMAN
nVent HOFFMAN DNSR2006R5 Raised Side Door 2000×600 mm
nVent HOFFMAN
nVent HOFFMAN DCP502 Door Frame Mounting Profiles, DCP, 24X492X14MM, Zinc Plated, Mild Steel
nVent HOFFMAN
nVent HOFFMAN ASST124 Rain hood Wall Mounted Enclosures, 1200X400, Stainless 304
nVent HOFFMAN
nVent HOFFMAN SSTB404012-316 316 Stainless Junction Box 400×400×120 mm IP66
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EF500-115R5?
- EF500-115R5 can be ordered from cballast.com as a nVent HOFFMAN catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this nVent HOFFMAN product?
- The manufacturer part number is EF500-115R5.
- What is the HS code for EF500-115R5?
- The customs tariff (HS) code for EF500-115R5 is 8414.90.
- Who manufactures EF500-115R5?
- EF500-115R5 is a nVent HOFFMAN product in the Enclosures range.
- Is a datasheet available for EF500-115R5?
- Yes — the EF500-115R5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EF500-115R5?
- The minimum order quantity is 1.
- Is EF500-115R5 available?
- Yes — EF500-115R5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
