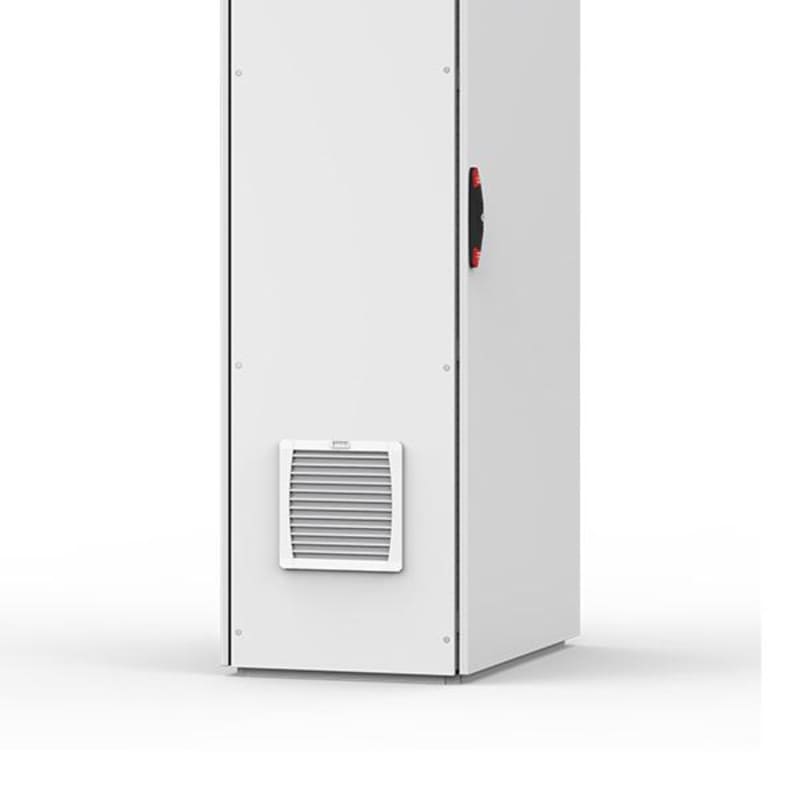

nVent HOFFMAN EF220-24R5 Filter Fan Air flow 98 M3/h, 24V DC, 50/60Hz, IP54
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EF220-24R5 — Filter Fan Air flow 98 m3/h, 24V DC, 50/60HZ, IP54. Filter fan for forced ventilation.
Technical Specifications
- Manufacturer part number (MPN)
- EF220-24R5
- EAN / GTIN
- 8713574132931
- Sales unit
- pcs
- Air flow
- 98 m³/h
- EL-number (NO)
- 4913275
- Aiflow volume, without filter
- 98/108m³/h
- Airflow volume, with filter
- 73/80m³/h
- Height
- 202 mm (7.96 in)
- Width
- 202 mm (7.96 in)
- Depth
- 92 mm (3.63 in)
- Cutout size
- 6.97 x 6.97in / 177 x 177mm
- Voltage dc
- 24 V
- Protection rating
- IP54; NEMA Type 12
- Material
- Thermoplastic
- Finish
- Smooth
- Color
- Light Gray
- Color code
- RAL 7035
- Nominal current
- 0.21 A
- Connection type
- 310 mm Cable
- Noise level
- 40dB(A)
- Weight
- 0.7 kg (1.54 lb)
- UPC
- 783510474614
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Snap mounting
- Colour
- Grey
- RAL-number
- 7.04
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With filter
- Yes
- Rated power
- 5 W
- Roof ventilator
- No
- Built as slide-in ventilator
- Yes
- Volume flow, freeblowing
- 82 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 21.6–26.4 V
- Operating voltage AC 60 Hz
- 230 V
- Operating voltage DC
- 21.6–26.4 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 8713574132931
- SAP 1000350058
- Code 81289462
Product Documentation
