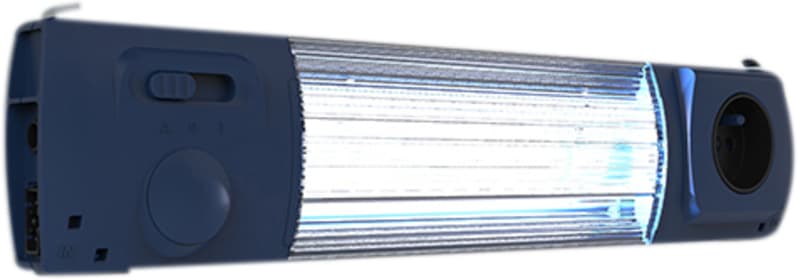

nVent HOFFMAN EL900DS-CH EL LED Enclosure Light, TPS + Socket J, 900LM 100-240V, 76X364X48MM, Black
Pricing
Request a quote
We reply within 24 hours
Product Description
nVent HOFFMAN EL900DS-CH — EL LED Enclosure Light, TPS + Socket J, 900lm 100-240V, 76x364x48mm, Black. LED Enclosure Light with quick-install feature allows fitting to the 25mm hole pattern of enclosure profiles.
Technical Specifications
- Manufacturer part number (MPN)
- EL900DS-CH
- EAN / GTIN
- 8713574231597
- Sales unit
- pcs
- Luminous flux
- 900 lm
- EL-number (NO)
- 3303013
- Height
- 76 mm (2.99 in)
- Width
- 364 mm (14.33 in)
- Depth
- 48 mm (1.89 in)
- Material
- Plastic
- Finish
- Smooth
- Color
- Black
- Socket type
- Type J
- Lamp type
- LED
- Light output
- 900lm
- Color temperature
- 4000K
- Light color
- Neutral White
- Power
- 9 W
- Nominal voltage
- 230 V
- Input voltage ac
- 100 – 240V
- Hertz
- 50/60Hz
- Connection type
- 3 Pole; Infeed; Trough-Wiring
- Operating temperature
- −4 to 131°F / −20 to 55°C
- Weight
- 0.7 kg (1.55 lb)
- Motion sensor included
- No
- Socket included
- Yes
- UPC
- 783510479213
- Standard packaging quantity
- 1
- Packing quantity
- 1
- Mounting method
- Plug bolts
- Lamp power
- 9 W
- Voltage type
- AC
- With socket outlet
- Yes
- With on/off switch
- Yes
- With light sensor
- No
- Length
- 364 mm
- Type of electric connection
- Plug/connector
- Degree of protection (IP)
- IP20
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 8713574231597
- SAP 1200422048
- Code 82473192
Product Documentation
