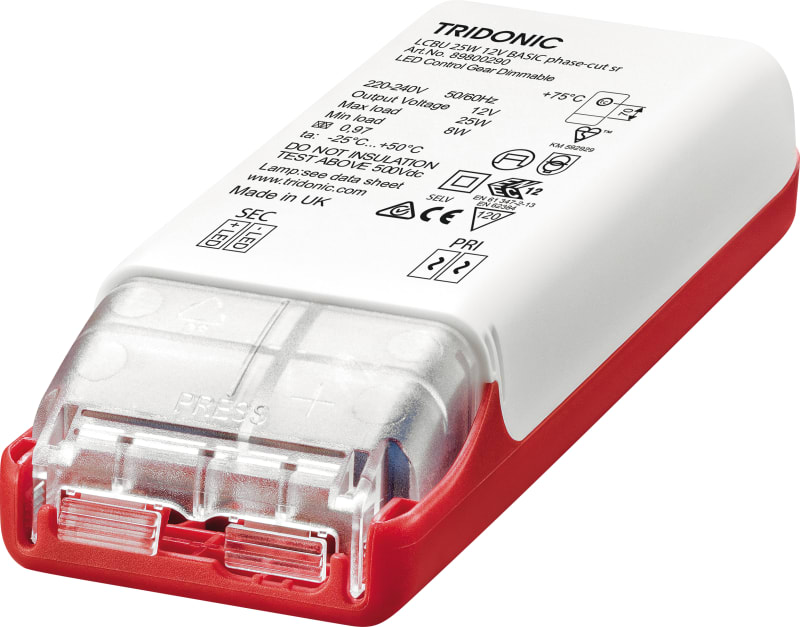

LED Driver LCBU 12V 8-25W Phase dimming
Part number89800290EAN / GTIN9006210501673HS code8542.39
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
nortronic 89800290 Spenningsstyrt LED Transformer dimmable.
Technical Specifications
- Manufacturer part number (MPN)
- 89800290
- EAN / GTIN
- 9006210501673
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Voltage
- 12 V
- Operation by Bluetooth
- No
- Compatible with Casambi
- No
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- Yes
- Constant light output (CLO)
- No
- No dim function
- No
- Housing
- Plastic housing
- Suitable for constant current
- No
- Suitable for constant voltage
- Yes
- Output voltage
- 12 V
- Output current
- 670–2100 mA
- Suitable for DC-voltage (primary side)
- Yes
- Output power
- 8–25 W
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Length
- 145 mm
- Width
- 51 mm
- Height
- 29.5 mm
- Diameter
- 58.67 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8542.39
Cross References
- EAN 9006210501673
- SAP 1000606560
- Code 8275503
Product Documentation
Document preview: LED Driver LCBU 12V 8-25W Phase dimming (89800290) — Specification sheet
