nortronic

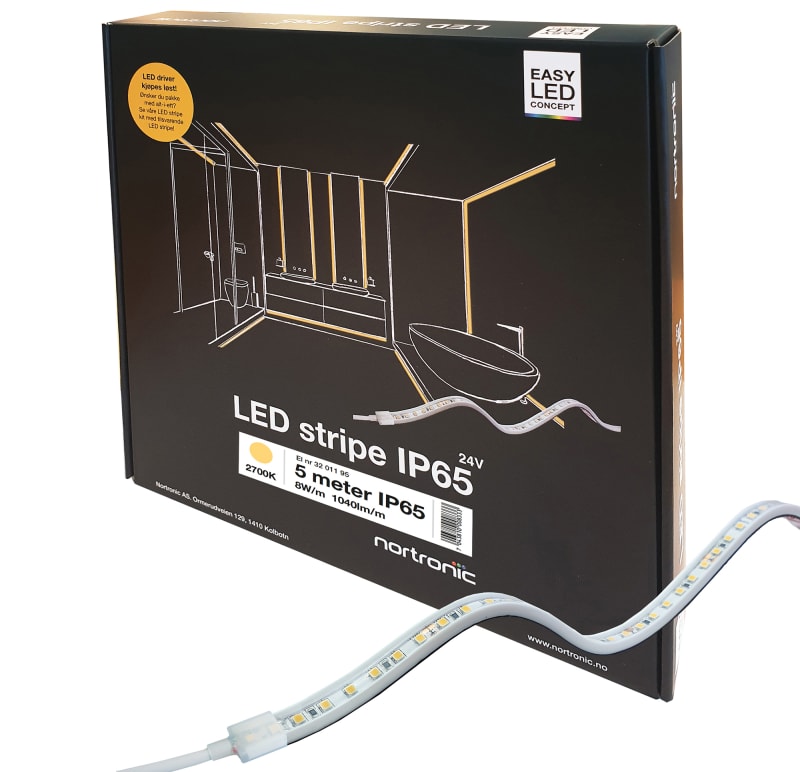

LEDstrip ELC 827 24V 8W 1040LM 5M IP65
Part number3201195EAN / GTIN7043810008333HS code8541.59
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
nortronic 3201195 LEDstrip ELC 827 24V 8W 1040lm 5m IP65.
Technical Specifications
- Manufacturer part number (MPN)
- 3201195
- EAN / GTIN
- 7043810008333
- Sales unit
- pcs
- Lifecycle status
- Phased out
- Voltage
- 24 V
- IP rating
- IP65
- Power
- 8 W
- Model
- Strip
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 128
- Number of nodes per foot
- 42.667
- Lamp power per meter
- 8 W
- Lamp power per foot
- 2.667 W
- Luminous flux per meter
- 1040 lm
- Voltage type
- DC
- Lamp voltage
- 24 V
- Beam angle
- 120 °
- Type of control gear
- LED operating device voltage-controlled
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP65
- Max. system power
- 40 W
- Colour of light
- White
- Colour temperature
- 2700 K
- Colour rendering index CRI
- 80-89
- Colour of light adjustable
- No
- Beam angle adjustable
- No
- Width
- 11 mm
- Height/depth
- 5 mm
- Length
- 5000 mm
- Lowest bending radius
- 60 mm
- Length of particular segments
- 7.8 mm
- With end piece
- Yes
- With connection set
- Yes
- With protective cover
- Yes
- Self-adhesive
- Yes
- Type of wiring
- Ending
- Number of poles
- 2
- Country of origin
- China
Standards & Compliance
- HS Code
- 8541.59
Cross References
- EAN 7043810008333
- SAP 1200585640
- Code 82955981
Product Documentation
Document preview: LEDstrip ELC 827 24V 8W 1040LM 5M IP65 (3201195) — Specification sheet
