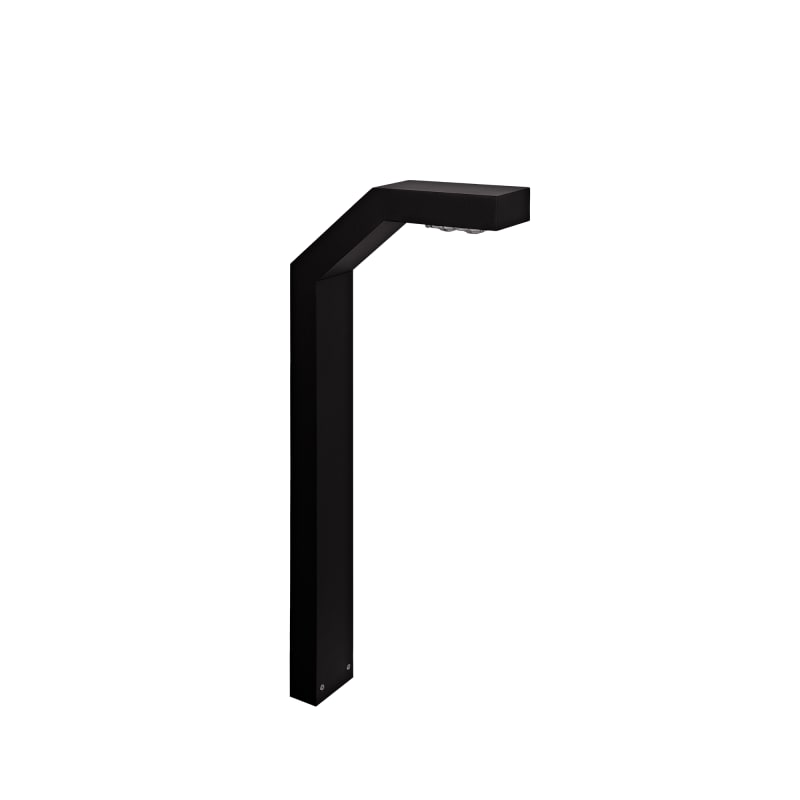

Trysil 1104 Black 85cm ASYM
Part number1104BEAN / GTIN7042890110462HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 1104B Trysil 1104, 3000K, IP65, 738lm 98,4 lm/W 7,5W 109 000h L70/B50, Phase-cut - Trailing edge (TE).
Technical Specifications
- Manufacturer part number (MPN)
- 1104B
- EAN / GTIN
- 7042890110462
- Sales unit
- pcs
- Series
- Trysil
- Model
- 1104
- Finish
- Black
- Height
- 85 cm
- Protection class according to IEC 61140
- I
- Width
- 200 mm
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Housing colour
- Black
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 7.5 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- With light sensor
- No
- Number of poles
- 3
- Length
- 850 mm
- Height/depth
- 110 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Indirect
- Light distribution
- Asymmetric
- Material cover
- Plastic, structured
- Impact strength
- IK09
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- 41-80° - Wide beam
- Colour temperature
- 3000 K
- Max. system power
- 7.5 W
- Rated luminous flux according to IEC 62722-2-1
- 738 lm
- Colour of light
- White
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 10900 h
- Light distributor
- None
- Luminaire efficacy
- 98.4 lm/W
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- Yes
- Power factor
- 0.95
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7042890110462
- SAP 1200735391
- Code 83863632
Product Documentation
Document preview: Trysil 1104 Black 85cm ASYM (1104B) — Specification sheet
