Norlys

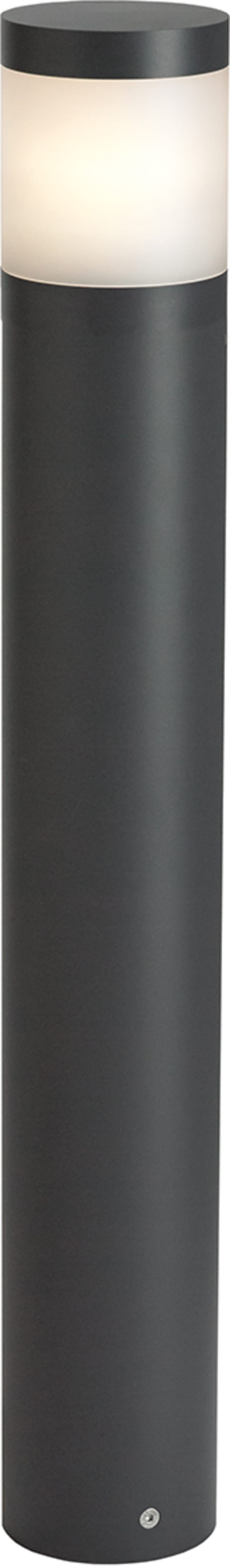

LILLESAND Graphite LED 3000K 85cm
Part number2330GREAN / GTIN7042892330080HS code9405.40
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 2330GR L70>72 000 hours, 897lm, 97,5lm/W, SDCM3, IP 65, DIMMABLE, 3000K KL II.
Technical Specifications
- Manufacturer part number (MPN)
- 2330GR
- EAN / GTIN
- 7042892330080
- Sales unit
- pcs
- Colour temperature
- 3000 K
- Protection class according to IEC 61140
- II
- Conductor cross section
- 4 mm²
- With base plate
- Yes
- Housing colour
- Anthracite
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 7.4 W
- Type of control gear
- Not required
- Colour rendering index CRI
- 80-89
- Diameter
- 120 mm
- With light sensor
- No
- Number of poles
- 2
- Height/depth
- 850 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Light distribution
- Symmetric
- Material cover
- Plastic, opal
- Impact strength
- IK08
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Max. system power
- 9.2 W
- Rated luminous flux according to IEC 62722-2-1
- 897 lm
- Colour of light
- White
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 72000 h
- Light distributor
- None
- Luminaire efficacy
- 97.5 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- E
- Lowest energy efficiency class of the exchangeable lamp
- C
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- Yes
- Power factor
- 0.9
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 7042892330080
- SAP 1200632607
- Code 83051234
Product Documentation
Document preview: LILLESAND Graphite LED 3000K 85cm (2330gr) — Specification sheet
