Norlys

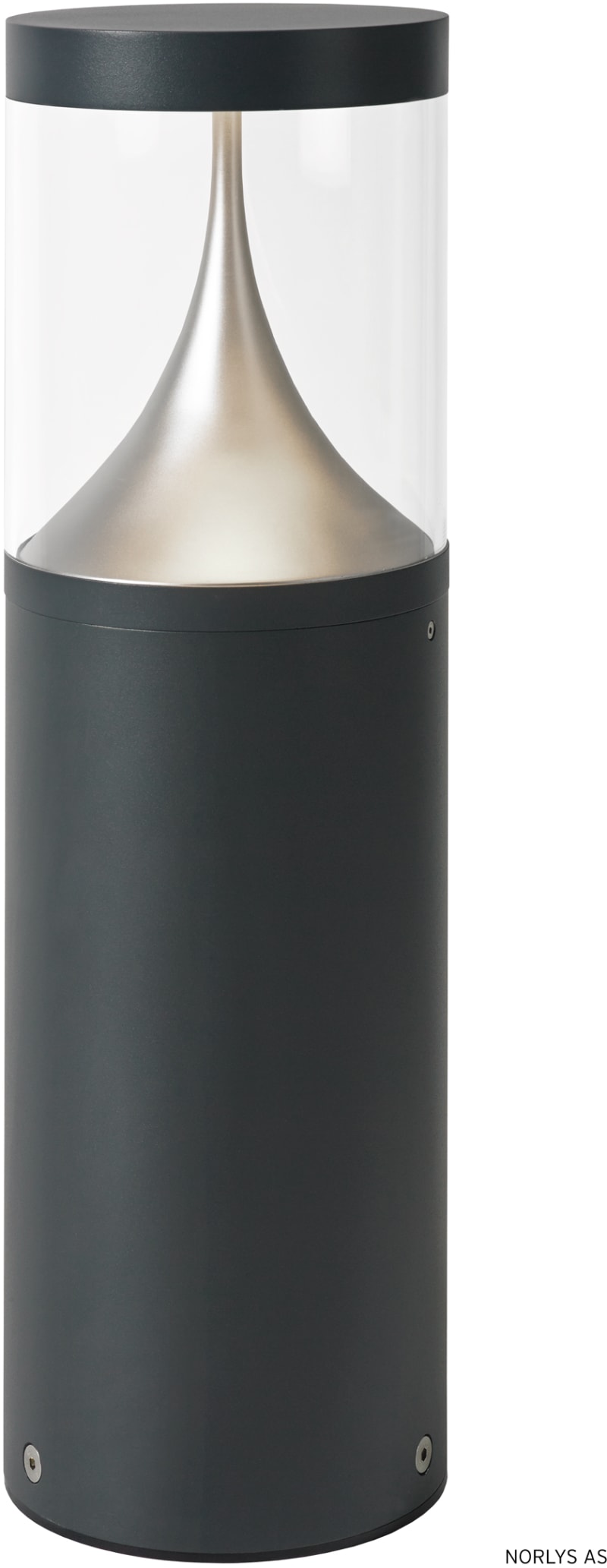

Egersund 1285 Graphite
Part number1285GREAN / GTIN7042891285084HS code9405.40
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 1285GR 17,6W LED, IP65, KL In.
Technical Specifications
- Manufacturer part number (MPN)
- 1285GR
- EAN / GTIN
- 7042891285084
- Sales unit
- pcs
- Protection class according to IEC 61140
- I
- Height
- 630 mm
- Conductor cross section
- 4 mm²
- With base plate
- Yes
- Housing colour
- Aluminium
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Max. lamp power
- 20.3 W
- Suitable for lamp power
- 20.3 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 200 mm
- With light sensor
- No
- Number of poles
- 3
- Length
- 630 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Indirect
- Light distribution
- Symmetric
- Material cover
- Plastic, transparent
- Impact strength
- IK07
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Colour temperature
- 3000 K
- Max. system power
- 20.3 W
- Rated luminous flux according to IEC 62722-2-1
- 1423 lm
- Colour of light
- White
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Light distributor
- Reflector
- Luminaire efficacy
- 82.8 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Exchangeable control gear
- Yes
- Power factor
- 0.98
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 7042891285084
- SAP 1000716803
- Code 8256940
Product Documentation
Document preview: Egersund 1285 Graphite (1285gr) — Specification sheet
More from Norlys
Norlys
Halmstad 1488 Black E27 10W LED
1488B
Norlys
212 Galvanised Steel
Halmstad
Norlys
London 481A/B Black in Chain
Norlys
Visby 576 Graphite (576gr)
576GR
Norlys

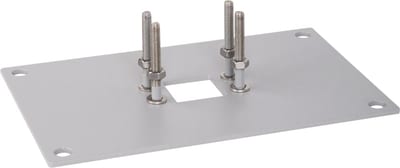

Asker /Molde Foot Plate 3081 Aluminium
3081AL
Norlys

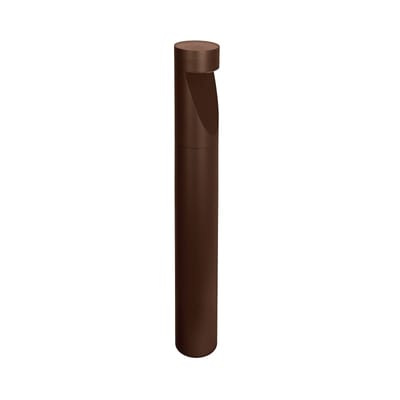

Oppland 1321 Corten 3000K 85cm
1321CS
Norlys

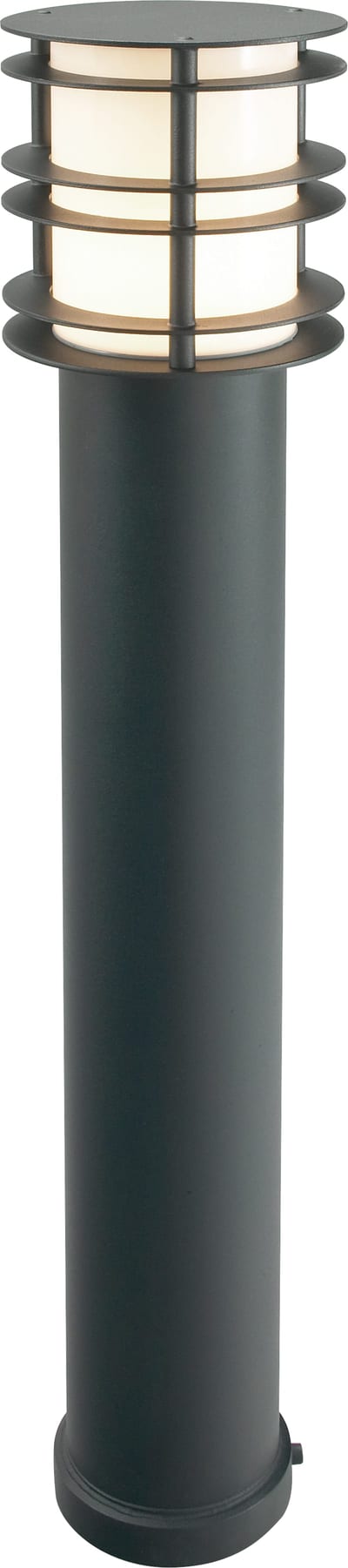

Stockholm 1265 Black
1265B
Norlys

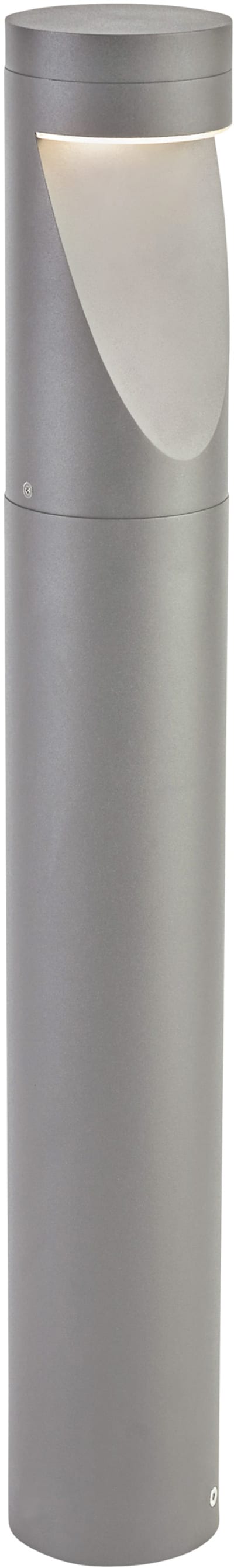

Oppland 1321 Aluminium
