Norlys

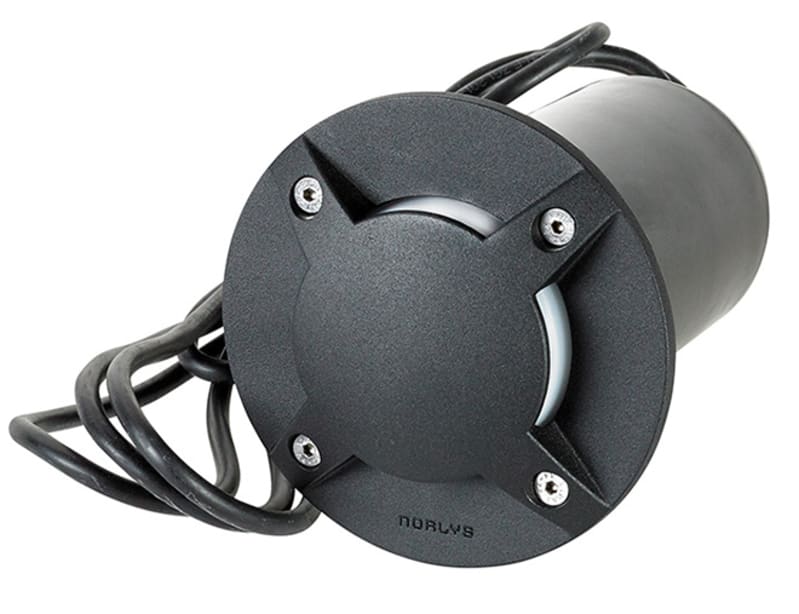

RENA 1631 Black (1631B)
Part number1631BEAN / GTIN7042891631065HS code9405.40
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 1631B 5,5W LED, GU10, IP68, KL In.
Technical Specifications
- Manufacturer part number (MPN)
- 1631B
- EAN / GTIN
- 7042891631065
- Sales unit
- pcs
- Series
- Rena
- Model
- 1631
- Finish
- Black
- Protection class according to IEC 61140
- I
- Outer diameter
- 130 mm
- Lamp holder
- GU10
- Conductor cross section
- 2.5 mm²
- Housing colour
- Black
- Dimmable
- Yes
- Voltage type
- AC
- Suitable for lamp power
- 5.5 W
- Type of control gear
- Not required
- Adjustable
- No
- Colour rendering index CRI
- 90-100
- Number of poles
- 3
- Length
- 182 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Electrical connection with connector system
- No
- Light distribution
- Symmetric
- Material cover
- Plastic, opal
- Impact strength
- IK10
- Over rollable
- Yes
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP68
- With light source
- Yes
- Max. load
- 1000 kg
- Suitable for number of light sources
- 1
- With control gear
- No
- Beam angle
- 21-40° - Medium beam
- Colour temperature
- 3000 K
- Max. system power
- 5.5 W
- Rated luminous flux according to IEC 62722-2-1
- 13 lm
- Colour of light
- White
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 40000 h
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Light distributor
- Reflector
- Luminaire efficacy
- 2.4 lm/W
- Dimming DSI
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Power factor
- 0.85
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 7042891631065
- SAP 1200142067
- Code 82038503
Product Documentation
Document preview: RENA 1631 Black (1631B) — Specification sheet
