Norlys

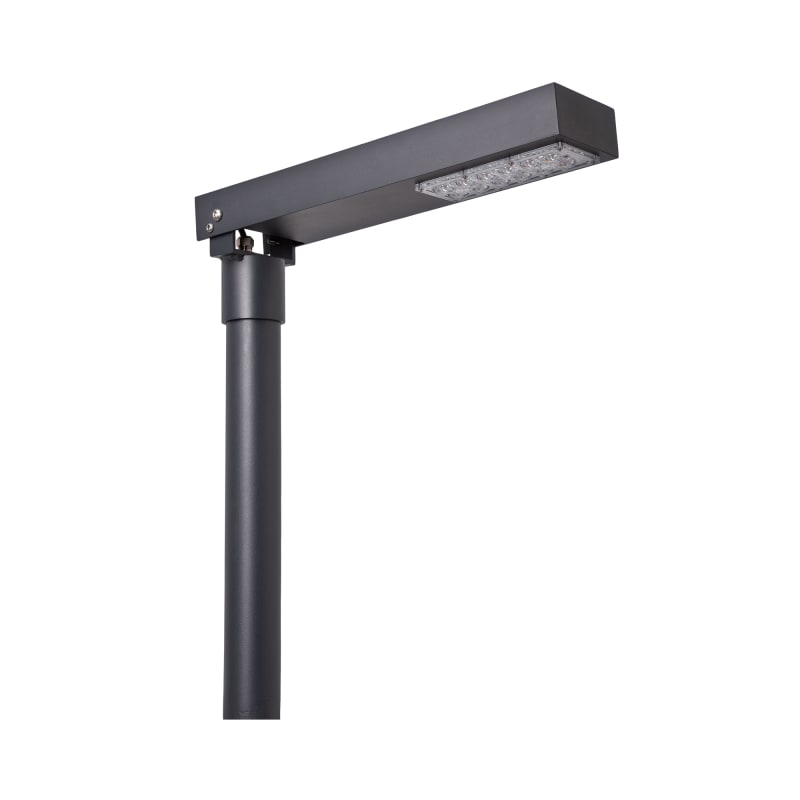

Asker 4382 Graphite 3000K
Part number4382GREAN / GTIN7042890438283HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 4382GR ASKER 4382 GRAPHITE 3000k SYMMETRIC DALI2 19,6W 2711LM SDCM5 RA70 L80/B20 100 000.
Technical Specifications
- Manufacturer part number (MPN)
- 4382GR
- EAN / GTIN
- 7042890438283
- Sales unit
- pcs
- Colour temperature
- 3000 K
- Mounting method
- Post top
- Protection class according to IEC 61140
- I
- Width
- 110 mm
- Conductor cross section
- 2.5 mm²
- Housing colour
- Anthracite
- Dimmable
- Yes
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 19.5 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 70-79
- Cable length
- 6 m
- With light sensor
- No
- Number of poles
- 5
- Length
- 470 mm
- Height/depth
- 140 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- With presence detector
- No
- Material cover
- Plastic, opal
- Impact strength
- IK10
- With connection cable
- Yes
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Adjustable optics
- No
- Suitable for spigot size
- 60 mm
- Max. system power
- 19.6 W
- Colour of light
- White
- Remote control
- Stand-alone control
- With radio control
- No
- With light regulation program control
- Yes
- Constant light output (CLO)
- Yes
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Colour consistency (McAdam ellipse)
- SDCM5
- Rated ambient temperature according to IEC 62722-2-1
- 25 °C
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- Yes
- Dimming DMX
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- Yes
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Zigbee
- No
- Luminaire efficacy
- 138.3 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Dimming DALI-2
- Yes
- Exchangeable control gear
- Yes
- Dimming D4i
- No
- Power factor
- 0.98
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7042890438283
- SAP 1200837315
- Code 84031168
Product Documentation
Document preview: Asker 4382 Graphite 3000K (4382gr) — Specification sheet
