Norlys

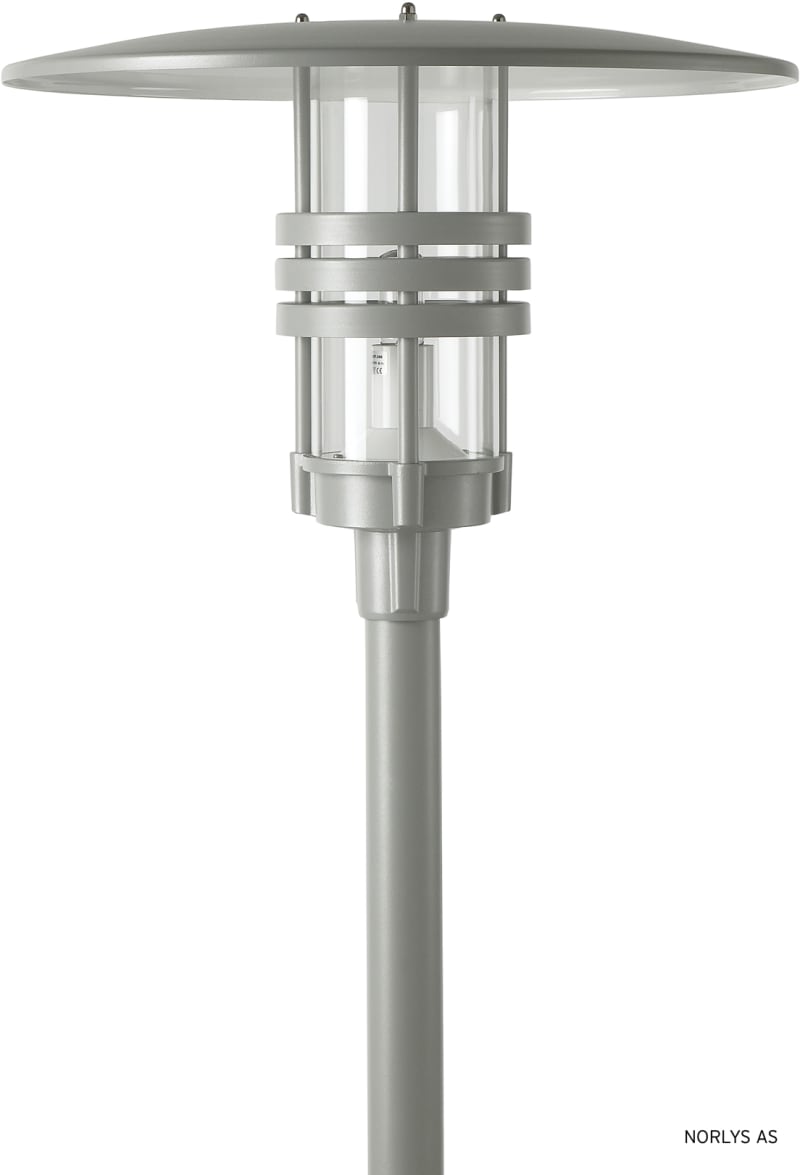

Visby 576 Aluminium (576AL)
Part number576ALEAN / GTIN7042895767098HS code9405.40
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Norlys 576AL 42,7W LED + 27,8W LED, IP65, KL In.
Technical Specifications
- Manufacturer part number (MPN)
- 576AL
- EAN / GTIN
- 7042895767098
- Sales unit
- pcs
- Series
- Visby
- Model
- 576
- Finish
- Aluminium
- Mounting method
- Post top
- Protection class according to IEC 61140
- I
- Width
- 620 mm
- Conductor cross section
- 2.5 mm²
- Housing colour
- Aluminium
- Dimmable
- No
- Surface protection
- Powder coating
- Voltage type
- AC
- Suitable for lamp power
- 44.5 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 4.7 m
- Number of poles
- 3
- Length
- 460 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Material cover
- Plastic, transparent
- With connection cable
- Yes
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 2
- With control gear
- Yes
- Adjustable optics
- No
- Suitable for spigot size
- 60 mm
- Colour temperature
- 3000 K
- Max. system power
- 44.5 W
- Rated luminous flux according to IEC 62722-2-1
- 2465 lm
- Colour of light
- White
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- Yes
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Colour consistency (McAdam ellipse)
- SDCM3
- Rated ambient temperature according to IEC 62722-2-1
- 25 °C
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- Yes
- Light distributor
- None
- Luminaire efficacy
- 55.4 lm/W
- Dimming DSI
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Exchangeable control gear
- Yes
- Power factor
- 0.9
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 7042895767098
- SAP 1000716808
- Code 8688055
Product Documentation
Document preview: Visby 576 Aluminium (576AL) — Specification sheet
