Nexans
KTV 0,8/3,6 59F TRI 77% PVC
Part number10136884HS code8544.20
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

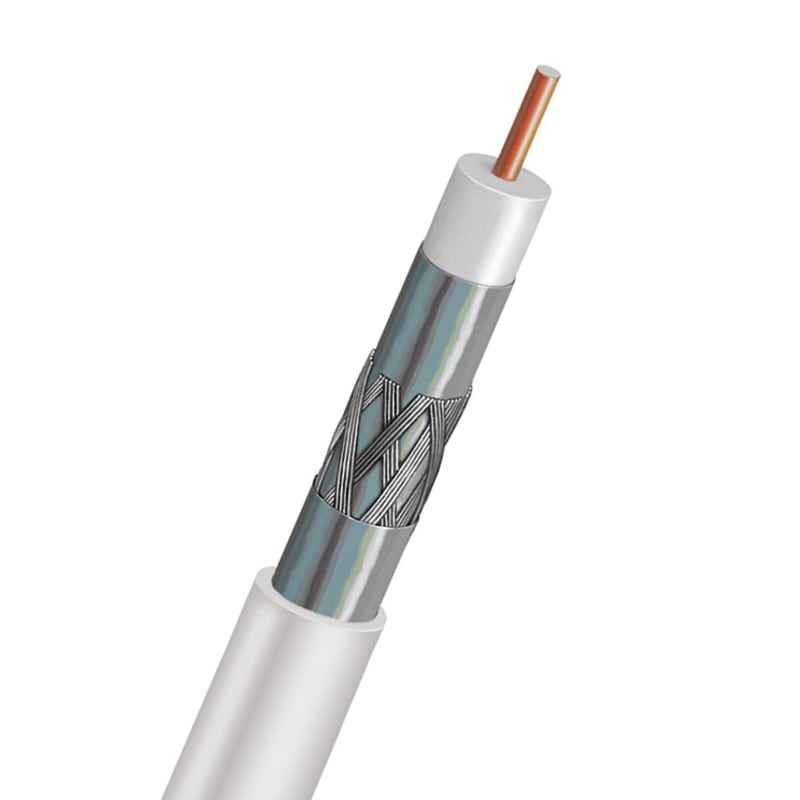

Nexans 10136884 Coaxial Cable 0,8/3,6 59F tri 77% PVC bonded foil/braid/foil shielded.
Technical Specifications
- Manufacturer part number (MPN)
- 10136884
- Sales unit
- m
- Package quantity
- 305 m
- UV resistant
- Yes
- Dielectric
- Polyethylene, foamed (foam PE)
- Armouring
- No
- Colour outer sheath
- White
- Material outer sheath
- Polyvinyl chloride (PVC)
- Type of outer conductor
- Foil + braiding
- Characteristic impedance
- 75 Ohm
- Diameter inner conductor
- 0.8 mm
- Diameter outer conductor
- 3.66 mm
- Outer conductor material
- Aluminium
- Inner conductor category
- Class 1 = solid
- Suitable for underground installation
- No
- Outer diameter approximate
- 4.34 mm
- Halogen free according to EN 60754-1/2
- No
- Inner conductor surface
- Copper-plated
- Outer conductor surface
- Bare
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- Number of screen layers
- 3
- Country of origin
- China
Standards & Compliance
- HS Code
- 8544.20
Cross References
- SAP 1000031518
- Code 8734462
Product Documentation
Document preview: KTV 0,8/3,6 59F TRI 77% PVC (10136884) — Specification sheet
