Nexans
N-LINE FQ/IX EASY 4G1,5 16-100 krt.
Part number10574195EAN / GTIN7045210134650HS code8544.49
Cables & Wiring
Power Cable
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

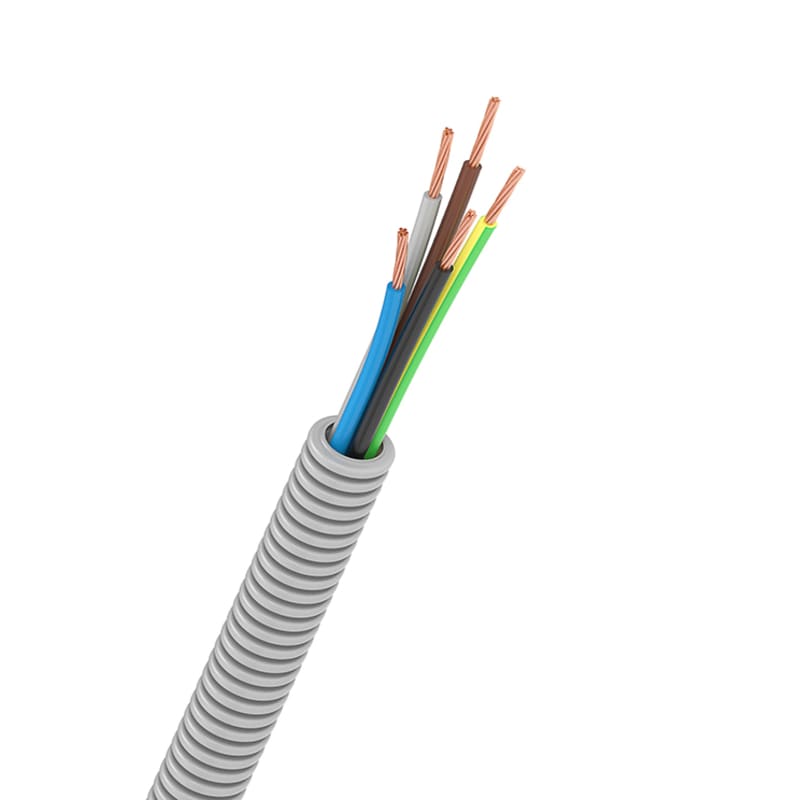

Nexans 10574195 Pre-pulled IX (halogen-free PN wire) in corrugated halogen-free plastic conduit.
Technical Specifications
- Manufacturer part number (MPN)
- 10574195
- EAN / GTIN
- 7045210134650
- Sales unit
- m
- Package quantity
- 100 m
- UV resistant
- No
- With metre indication
- Yes
- Suitable for outdoor installation
- No
- Impact strength class according to EN 61386-1
- Medium (class 3 / 2 Joule)
- Compressive strength class according to EN 61386-1
- Medium (class 3, 750 N)
- Halogen free
- Yes
- Fire retardant version
- Yes
- Bending strength
- Pliable
- Compressive strength class
- Medium (class 3 / 2 Joule)
- Impact strength
- Medium (class 3 / 2 Joule)
- Surface mounting
- No
- Suitable for installation on wood
- Yes
- Suitable for hollow wall installation
- Yes
- Suitable for concrete installation
- Yes
- Machine and systems installation
- No
- Suitable for underfloor installation (screed)
- Yes
- Outdoor installation
- No
- Suitable for underground installation
- No
- Inner diameter
- 12 mm
- Outer diameter
- 16 mm
- Operating temperature
- -40–70 °C
- High conducting inner coating
- Yes
- Colour
- Grey
- Number of cores single core cable
- 3
- With draw wire
- No
- Number of cores low voltage power cable
- 3
- With protective conductor
- Yes
- With integrated POF conductor
- No
- Nominal cross section conductor
- 1.5 mm²
- Reaction-to-fire according to EN 13501-6
- Class: Dca
- Flush-mounted installation
- Yes
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7045210134650
- SAP 1200719829
- Code 83847476
Product Documentation
Document preview: N-LINE FQ/IX EASY 4G1,5 16-100 krt. (10574195) — Specification sheet
