Nexans
N-LINE CAT6 U/UTP 16-100 krt.
Part number27125184-904-02EAN / GTIN7045210134605HS code8544.42
Cables & Wiring
Power Cable
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

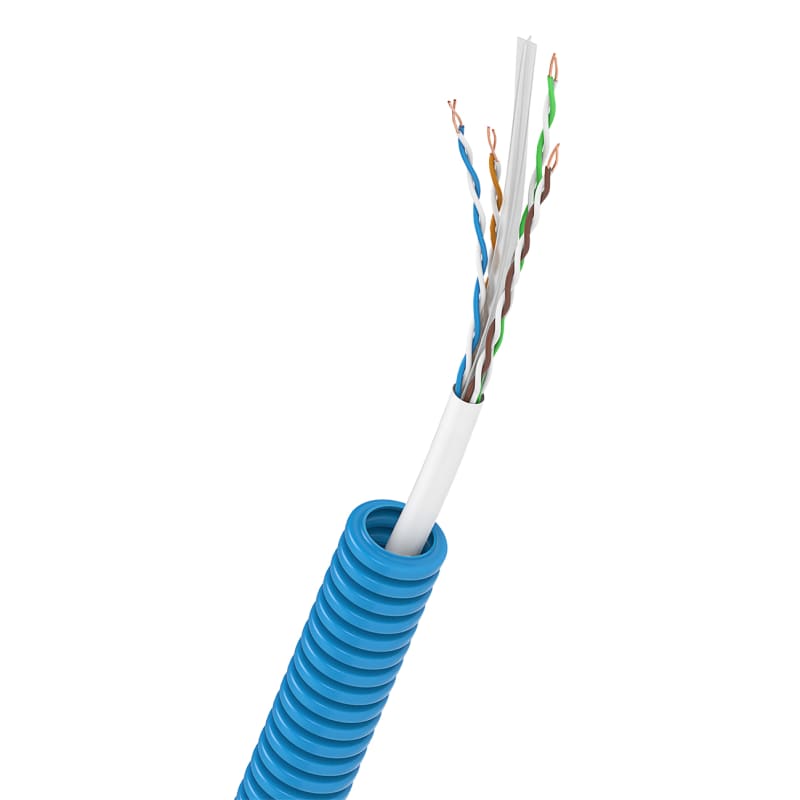

Nexans 27125184-904-02 Halogen-free corrugated PP installation conduit. Unshielded Cat 6 data cable with 4 pair in star formation m/ centre cross.
Technical Specifications
- Manufacturer part number (MPN)
- 27125184-904-02
- EAN / GTIN
- 7045210134605
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 100 m
- UV resistant
- No
- With metre indication
- Yes
- Suitable for outdoor installation
- No
- Impact strength class according to EN 61386-1
- Medium (class 3 / 2 Joule)
- Compressive strength class according to EN 61386-1
- Medium (class 3, 750 N)
- Material
- Polypropylene (PP)
- Halogen free
- Yes
- Fire retardant version
- Yes
- Bending strength
- Pliable
- Compressive strength class
- Medium (class 3 / 2 Joule)
- Impact strength
- Medium (class 3 / 2 Joule)
- Surface mounting
- No
- Suitable for installation on wood
- Yes
- Suitable for hollow wall installation
- Yes
- Suitable for concrete installation
- Yes
- Machine and systems installation
- No
- Suitable for underfloor installation (screed)
- Yes
- Outdoor installation
- No
- Suitable for underground installation
- No
- Inner diameter
- 12 mm
- Outer diameter
- 16 mm
- Operating temperature
- -40–70 °C
- High conducting inner coating
- Yes
- Colour
- Blue
- Number of cores signal-/telecommunications cable
- 1
- Number of data cables
- 1
- With draw wire
- No
- With protective conductor
- No
- With integrated POF conductor
- No
- Nominal cross section conductor
- 0.34 mm²
- Reaction-to-fire according to EN 13501-6
- Class: Dca
- Flush-mounted installation
- Yes
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7045210134605
- SAP 1200719826
- Code 83847467
Product Documentation
Document preview: N-LINE CAT6 U/UTP 16-100 krt. (27125184-904-02) — Specification sheet
