Nexans

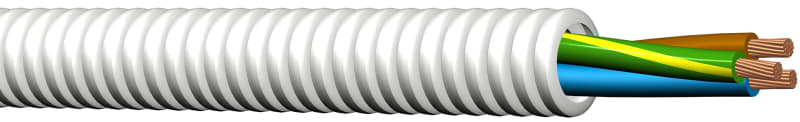

N-Line PN 3G2,5 16-250 TR
Part number10545808EAN / GTIN7045210122657HS code8544.49
Cables & Wiring
Power Cable
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Nexans 10545808 N-LINE PN 3G2,5 16-250 TR.
Technical Specifications
- Manufacturer part number (MPN)
- 10545808
- EAN / GTIN
- 7045210122657
- Sales unit
- m
- Package quantity
- 250 m
- With metre indication
- Yes
- Suitable for outdoor installation
- No
- Impact strength class according to EN 61386-1
- Medium (class 3 / 2 Joule)
- Material
- Polypropylene (PP)
- Halogen free
- No
- Fire retardant version
- Yes
- Bending strength
- Flexible
- Compressive strength class
- Medium (class 3 / 2 Joule)
- Surface mounting
- No
- Suitable for installation on wood
- Yes
- Suitable for hollow wall installation
- Yes
- Suitable for concrete installation
- Yes
- Machine and systems installation
- No
- Suitable for underfloor installation (screed)
- Yes
- Outdoor installation
- No
- Suitable for underground installation
- No
- Inner diameter
- 12 mm
- Outer diameter
- 16 mm
- Operating temperature
- -40–70 °C
- High conducting inner coating
- Yes
- Colour
- White
- Number of cores single core cable
- 3
- With draw wire
- No
- Number of cores low voltage power cable
- 3
- With protective conductor
- Yes
- With integrated POF conductor
- No
- Nominal cross section conductor
- 2.5 mm²
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- Flush-mounted installation
- Yes
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7045210122657
- SAP 1200154062
- Code 82046217
Product Documentation
Document preview: N-Line PN 3G2,5 16-250 TR (10545808) — Specification sheet
