Nexans
Millimat/100 250W 2,5M²
Part number10143278EAN / GTIN7045210054538HS code8544.42
HVAC & Refrigeration
Heating Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

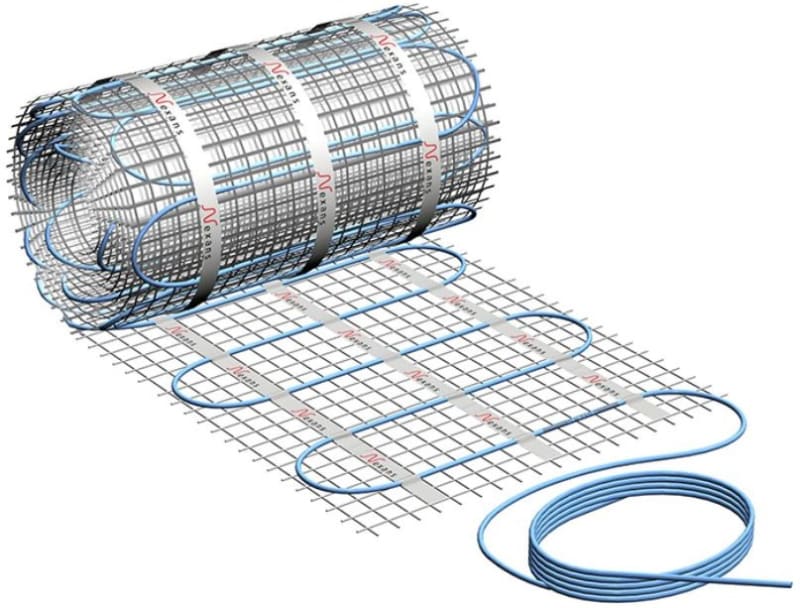

Nexans 10143278 MILLIMAT two-conductor heating cable mat 100W/m² for low-profile floor.
Technical Specifications
- Manufacturer part number (MPN)
- 10143278
- EAN / GTIN
- 7045210054538
- HS code
- 8544.42
- Sales unit
- pcs
- Power
- 250 W
- Width
- 500 mm
- Model
- Heating cable
- Application
- Heating foil
- Thickness
- 4.5 mm
- Self-adhesive
- Yes
- Surface
- 2.5 m²
- With room temperature controller
- No
- Length
- 5000 mm
- Heating conductor load
- 10 W/m
- With support mat
- Yes
- Fixation thermal conductor
- Glued
- Number of cold conductors
- 1
- Length of cold conductors
- 2500 mm
- Resistance
- 212 Ohm
- With controller
- No
- Connection voltage
- 230 V
- Connected load
- 250 W
- With floor temperature sensor
- No
- Suitable as outdoor surface heating
- No
- Suitable as roof surface heating
- No
- Suitable for damp space
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7045210054538
- SAP 1200433078
- Code 82500379
Product Documentation
Document preview: Millimat/100 250W 2,5M² (10143278) — Specification sheet
More from Nexans
Nexans

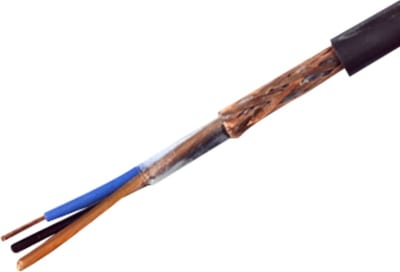

Mprxcx 331 0.6/1KV 3G1.5
10171730
Nexans
PUREAX 5G25MM2 H07BQ-F
10256498
Nexans
Millimat/100 150W 1,5M²
10143276
Nexans

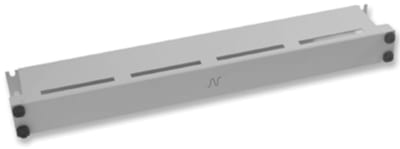

Patcheguide 1HU with cover WH
