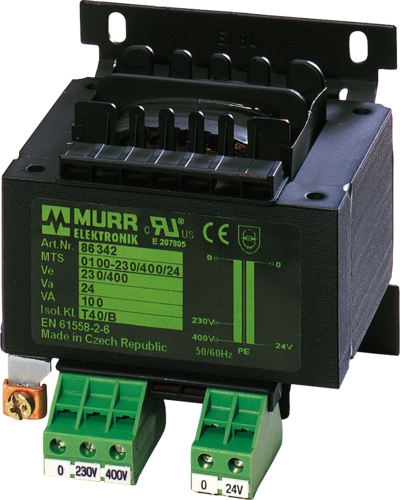

MTS 1-Phase Safety Transformer P: 100VA In: 230/400VAC Out: 24VAC

Murrelektronik 86342 — MTS 1-PHASE SAFETY TRANSFORMER P: 100VA IN: 230/400VAC OUT: 24VAC. Single-phase safety transformer 100 VA Isolation class T 40/B Other voltages on request.

Manufacturer part number (MPN)

86342

Model designation

MTS 0100-230-400/24

EAN / GTIN

4048879078535

HS code

8504.31

EU customs tariff number

85043180

US customs tariff number

8504314065

Weight

1.900 kg

Country of origin

CZ

Sales unit

pcs

Electrical data | Supply - Protective measure

SELV

Electrical data | Supply - Power frequency

50 ... 60 Hz

Electrical data | Input - Nominal input voltage AC

230 V … 400 V

Electrical data | Input - Nominal current AC

0.54 A @ 230 V,0.31 A @ 400 V

Input - Inrush current at input voltage 1

3.5 A

Input - Inrush current at input voltage 2

2 A

Input - Short-circuit current at input voltage 1

5 A

Input - Short-circuit current at input voltage 2

2.98 A

Electrical data | Output - Output voltage adjustable

No

Electrical data | Output - Output voltage AC

24 V

Electrical data | Output - Power rating AC max.

100 VA

Electrical - Insulation test voltage input - output

4 kV

Mechanical data | Mounting data - Height

86 mm

Mechanical data | Mounting data - Width

84 mm

Mechanical data | Mounting data - Depth

98 mm

Mechanical data | Mounting data - Mounting method

geschnappt

Mounting data - Suitable for mounting type

Mounting rail TH35, Long-hole mounting, (EN 60715)

Mechanical data | Mounting data - Mounting dimension a

64.5 mm

Mechanical data | Mounting data - Mounting dimension b

64 mm

Mechanical data | Mounting data - Mounting dimension c

4.8 mm

Mechanical data | Mounting data - Diameter bore

4.8 mm

Mechanical data | Mounting data - Length bore

8.4 mm

Climatic - Operating temperature min.

-20 °C

Climatic - Operating temperature max.

40 °C

Climatic - Ambient temperature (storage, transport)

-40 °C … 80 °C

Conformity - Product standard

EN IEC 61558-2-4, EN IEC 61558-2-6, IEC 62041 category 0

Connection types - Connection type 1

Input

Connection types - Connection type 2

Output

Connection type 1 - Family construction form

terminal

Connection type 1 - No. of poles

3

Connection type 1 - Gender

female

Connection type 1 - Connection

Screw terminals SK

Connection type 1 - PIN 2

230 V

Connection type 1 - PIN 3

400 V

Connection type 2 - Family construction form

terminal

Connection type 2 - No. of poles

2

Connection type 2 - Gender

female

Connection type 2 - Connection

Screw terminals SK

Connection type 2 - PIN 2

24 V DC

Connection type 3 - Family construction form

terminal

Connection type 3 - No. of poles

1

Connection type 3 - Gender

female

Connection type 3 - Color contact carrier

metallic

Connection type 3 - Connection

Screw terminals SK

Connection type 3 - PIN 1

PE

ETIM-5.0

EC002486

ETIM-6.0

EC002486

ETIM-7.0

EC002486

ETIM-8.0

EC002486

ETIM-9.0

EC002486

ETIM-10.0

EC002486

Packaging unit

1

ECLASS 14.0

27031302

HS Code

8504.31
