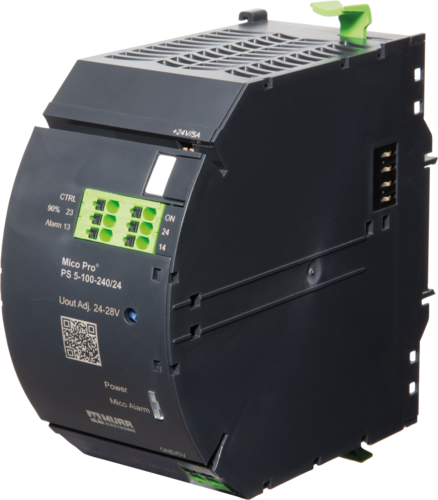

Mico Pro PS 5-100-240/24 IN: 90 - 265VAC OUT: 24-28V/5ADC / Cover plate included (heavy duty)

Murrelektronik 9000-41190-0000105 — Mico Pro PS 5-100-240/24 IN: 90 - 265VAC OUT: 24-28V/5ADC / Cover plate included (heavy duty). Pro PS 5-100-240/24 INPUT: 90.265 V AC OUTPUT: 24.28 V DC Current: 5 A Build your own Mico Pro® online: START Mains failure bridging min. min. 20 ms (115 V AC); min. 65 ms (230 V AC)

Manufacturer part number (MPN)

9000-41190-0000105

Model designation

Mico

EAN / GTIN

4048879695664

HS code

8504.40

EU customs tariff number

85044083

US customs tariff number

8504409550

Weight

0.440 kg

Country of origin

CZ

Sales unit

pcs

Electrical data - Parallel connection

No

Electrical data - Series connection

No

Electrical data | Supply - Protective measure

SELV

Electrical data | Supply - Power frequency

50 ... 60 Hz

Electrical data | Input - Input voltage AC min.

90 V

Electrical data | Input - Input voltage AC max.

265 V

Electrical data | Input - Nominal input voltage AC

115 V … 230 V

Electrical data | Input - Nominal current AC

1.1 A @ 115 V,2.3 A @ 230 V

Electrical data | Input - Inrush current max.

30 A

Electrical data | Input - Power factor

115 V AC @ 230 V AC

Electrical data | Input - Efficiency

89.4 % @ 115 V AC 90.8 % @ 230 V AC

Electrical data | Input - Characteristic back-up fuse

Inertia

Input - Fuse protection primary side internal

3.15 A

Input - ON input voltage control inputs min.

9 V

Input - ON input voltage control inputs max.

30 V

Electrical data | Input - CTRL signal

ON/OFF

Input - CTRL input voltage control inputs high min.

9 V

Input - CTRL input voltage control inputs high max.

30 V

Input - ON pulse length control inputs high min.

120 ms

Electrical data | Output - Output voltage adjustable

Yes

Electrical data | Output - Output voltage DC

24 V

Electrical data | Output - Output voltage DC min.

24 V

Electrical data | Output - Output voltage DC max.

28 V

Electrical data | Output - Output current

5 A

Electrical data | Output - Spikes (s-s) max.

230 mV

Electrical data | Output - Ripple effective max.

15 mV

Electrical data | Output - Switching voltage AC max.

30 V

Electrical data | Output - Switching voltage DC max.

30 V

Installation | Connection - Connection

Push-In spring clamp terminals

Electrical - Degree of protection (EN IEC 60529)

IP20

Electrical - Overload protection output

Yes

Electrical - Short-circuit protection output

Yes

Electrical - Overtemperature protection output

Yes

Mechanical data | Mounting data - Height

130 mm

Mechanical data | Mounting data - Width

54 mm

Mechanical data | Mounting data - Depth

114 mm

Mechanical data | Mounting data - Mounting method

geschnappt

Mounting data - Suitable for mounting type

Mounting rail TH35, (EN 60715)

Electromagnetic compatibility - Interference emission

IEC 61000-3-2

Climatic - Operating temperature min.

-25 °C

Climatic - Operating temperature max.

55 °C

Climatic - Ambient temperature (storage, transport)

-40 °C … 85 °C

Climatic - Relative humidity (operation)

5 % … 95 %

Climatic - Additional condition relative humidity

no condensation

Conformity - Product standard

EN IEC 61010-2-201, EN 61204-3

ETIM-5.0

EC001440

ETIM-6.0

EC001440

ETIM-7.0

EC001440

ETIM-8.0

EC001440

ETIM-9.0

EC001440

ETIM-10.0

EC001440

Packaging unit

1

ECLASS 14.0

27040701

HS Code

8504.40

• EAN 4048879695664
• SAP 1200349010
• Code 82362762
