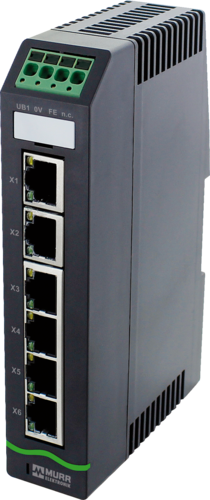

Xelity 6TX Unmanaged Switch 6 Port 100MBIT
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 58811 — Xelity 6TX Unmanaged Switch 6 Port 100Mbit. 6 port unmanaged switch
Technical Specifications
- Manufacturer part number (MPN)
- 58811
- Model designation
- Xelity 6TX
- EAN / GTIN
- 4048879798396
- HS code
- 8517.62
- EU customs tariff number
- 85176200
- US customs tariff number
- 8517620090
- Weight
- 0.139 kg
- Country of origin
- DE
- Sales unit
- pcs
- Electrical data | Supply - Operating voltage DC min.
- 9.5 V
- Electrical data | Supply - Operating voltage DC max.
- 31.5 V
- Industrial Communication - Data transmission rate max.
- 100 Mbit/s
- Ethernet functionality - VLAN unmanaged (IEEE 802.1Q)
- Yes
- Ethernet functionality - Switch type
- unmanaged
- Industrial communication | Ethernet functionality - duplex
- Full duplex
- Ethernet functionality - Auto-negotiation
- Yes
- Ethernet functionality - Auto-crossover
- Yes
- Diagnostics - Alarm contact
- No
- Diagnostics - Diagnostic
- No voltage
- Diagnostics - LED display
- Ethernet connection/data traffic
- Electrical - Degree of protection (EN IEC 60529)
- IP20
- Electrical - Invers-polarity protection
- Yes
- Device protection | Electrical - Over voltage protection
- Yes
- Mechanical data | Material data - housing
- Plastic
- Mechanical data | Material data - Color housing
- black
- Mechanical data | Mounting data - Height
- 140 mm
- Mechanical data | Mounting data - Width
- 30 mm
- Mechanical data | Mounting data - Depth
- 85.1 mm
- Mechanical data | Mounting data - Mounting method
- geschnappt
- Mounting data - Suitable for mounting type
- Mounting rail TH35, (EN 60715)
- Climatic - Operating temperature min.
- -25 °C
- Climatic - Operating temperature max.
- 60 °C
- Climatic - Ambient temperature (storage, transport)
- -40 °C … 85 °C
- Connection types - Connection type 1
- 6
- Connection type 1 - Family construction form
- RJ45
- Connection type 1 - No. of poles
- 8
- Connection type 1 - Gender
- female
- Connection type 1 - Color contact carrier
- black
- Connection type 1 - PIN 1
- TD +
- Connection type 1 - PIN 2
- TD -
- Connection type 1 - PIN 3
- RD +
- Connection type 1 - PIN 4
- n.c.
- Connection type 1 - PIN 5
- n.c.
- Connection type 1 - PIN 6
- RD -
- Connection type 1 - PIN 7
- n.c.
- Connection type 1 - PIN 8
- n.c.
- Connection type 2 - Family construction form
- terminal
- Connection type 2 - No. of poles
- 4
- Connection type 2 - Gender
- female
- Connection type 2 - Color contact carrier
- green
- Connection type 2 - Connection
- Spring clamp terminals FK
- Connection type 2 - PIN 1
- 24 V DC (UB 1)
- Connection type 2 - PIN 2
- 0 V
- Connection type 2 - PIN 3
- PE
- Connection type 2 - PIN 4
- n.c.
- ETIM-5.0
- EC000734
- ETIM-6.0
- EC000734
- ETIM-7.0
- EC000734
- ETIM-8.0
- EC000734
- ETIM-9.0
- EC000734
- ETIM-10.0
- EC000734
- Packaging unit
- 1
- ECLASS 14.0
- 19170402
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4048879798396
- SAP 1200331185
- Code 82333718
Product Documentation
More from Murrelektronik
Murrelektronik
RJ45 male 0° / RJ45 male 0° shielded FRNC/LS0H 4X2XAWG27 shielded bu UL 3M (7000-74712-8780300)
Murrelektronik
RJ45 male 0° / RJ45 male 0° shielded FRNC/LS0H 4X2XAWG27 shielded bu UL 0,3M
7000-74712-8780030
Murrelektronik
RJ45 male 0° / RJ45 male 0° shielded FRNC/LS0H 4X2XAWG27 shielded gr UL 1M (7000-74712-7780100)
Murrelektronik
M12 male 0° / M12 female 90° A-cod. LED F&B PVC 4X0.34 gy UL/CSA 0.3M
7014-40341-2140030
Murrelektronik
RJ45 male 0° / RJ45 male 0° shielded FRNC/LS0H 4X2XAWG27 shielded gr UL 3M (7000-74712-7780300)
Murrelektronik
TREE 4TX Metal - Unmanaged Switch - 4 Ports
58151
Murrelektronik
TREE 8TX Metal - Unmanaged Switch - 8 Ports (58152)
Murrelektronik
RJ45 male 0° / RJ45 male 0° shielded FRNC/LS0H 4X2XAWG27 shielded ye UL 3M (7000-74711-3780300)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 58811?
- 58811 can be ordered from cballast.com as a Murrelektronik catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Murrelektronik product?
- The manufacturer part number is 58811.
- What is the HS code for 58811?
- The customs tariff (HS) code for 58811 is 8517.62.
- Who manufactures 58811?
- 58811 is a Murrelektronik product in the Control & Automation range.
- Is a datasheet available for 58811?
- Yes — the 58811 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 58811?
- The minimum order quantity is 1.
- Is 58811 available?
- Yes — 58811 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
