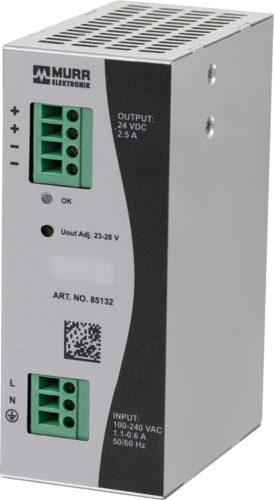

ECO-RAIL-2 Power Supply 1-Phase, In: 90-264VAC Out: 24V/2,5ADC
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 85132 — ECO-RAIL-2 POWER SUPPLY 1-PHASE, IN: 90-264VAC OUT: 24V/2,5ADC. 2.5-100-240/24 INPUT: 100.240 V AC OUTPUT: 23.28 V DC Current: 2.5 A Mains failure bridging min. min. 20 ms (115 V AC); min. 100 ms (230 V AC)
Technical Specifications
- Manufacturer part number (MPN)
- 85132
- Model designation
- Eco-Rail-2
- EAN / GTIN
- 4048879694469
- HS code
- 8504.40
- EU customs tariff number
- 85044083
- US customs tariff number
- 8504409550
- Weight
- 0.500 kg
- Country of origin
- CN
- Sales unit
- pcs
- Electrical data - Parallel connection
- No
- Electrical data - Series connection
- Yes
- Electrical data - Number of devices series connection max.
- 2
- Electrical data | Supply - Power frequency
- 50 ... 60 Hz
- Electrical data | Input - Input voltage AC min.
- 100 V
- Electrical data | Input - Input voltage AC max.
- 240 V
- Electrical data | Input - Nominal input voltage AC
- 100 V … 240 V
- Electrical data | Input - Nominal current AC
- 1.3 A @ 100 V,0.6 A @ 240 V
- Electrical data | Input - Inrush current max.
- 20 A @ 230 V
- Electrical data | Input - Efficiency
- 84 % @ 115 V AC 85 % @ 230 V AC
- Electrical data | Input - Characteristic back-up fuse
- Inertia
- Input - Fuse protection primary side internal
- 4 A
- Electrical data | Output - Output voltage adjustable
- Yes
- Electrical data | Output - Output voltage DC
- 24 V
- Electrical data | Output - Output voltage DC min.
- 23 V
- Electrical data | Output - Output voltage DC max.
- 28 V
- Electrical data | Output - Output current
- 2.5 A
- Electrical data | Output - Spikes (s-s) max.
- 50 mV
- Electrical data | Output - Ripple effective max.
- 10 mV
- Electrical - Degree of protection (EN IEC 60529)
- IP20
- Electrical - Overload protection output
- Yes
- Electrical - Short-circuit protection output
- Yes
- Mechanical data | Mounting data - Height
- 125 mm
- Mechanical data | Mounting data - Width
- 50 mm
- Mechanical data | Mounting data - Depth
- 84 mm
- Mechanical data | Mounting data - Mounting method
- geschnappt
- Mounting data - Suitable for mounting type
- Mounting rail TH35, (EN 60715)
- Electromagnetic compatibility - Interference emission
- IEC 61000-3-2
- Climatic - Operating temperature min.
- 0 °C
- Climatic - Operating temperature max.
- 40 °C
- Environmental characteristics | Climatic - Derating
- 40 °C
- Climatic - Ambient temperature (storage, transport)
- -20 °C … 85 °C
- Climatic - Relative humidity (operation)
- 20 % … 90 %
- Climatic - Additional condition relative humidity
- no condensation
- Conformity - Product standard
- EN IEC 61010-2-201
- Connection type 1 - Family construction form
- terminal
- Connection type 1 - No. of poles
- 3
- Connection type 1 - Gender
- female
- Connection type 1 - Color contact carrier
- green
- Connection type 1 - Connection
- Spring clamp terminals FK
- Connection type 1 - PIN 1
- PE
- Connection type 1 - PIN 2
- N
- Connection type 1 - PIN 3
- L
- Connection type 2 - Family construction form
- terminal
- Connection type 2 - No. of poles
- 4
- Connection type 2 - Gender
- female
- Connection type 2 - Color contact carrier
- green
- Connection type 2 - Connection
- Spring clamp terminals FK
- Connection type 2 - PIN 3
- +
- Connection type 2 - PIN 4
- +
- ETIM-5.0
- EC002540
- ETIM-6.0
- EC002540
- ETIM-7.0
- EC002540
- ETIM-8.0
- EC002540
- ETIM-9.0
- EC002540
- ETIM-10.0
- EC002540
- Packaging unit
- 1
- ECLASS 14.0
- 27040701
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4048879694469
- SAP 1200142794
- Code 82038029
