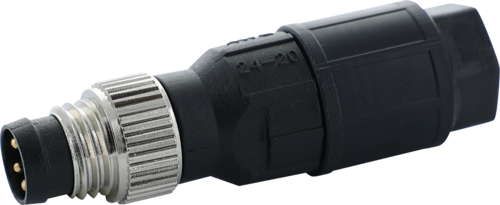

M8 male 0° A-cod. IDC 4-POL., 0,25 - 0,5mm², 2,5 - 5mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 7000-08345-0000000 — M8 male 0° A-cod. IDC 4-pol., 0,25 - 0,5mm², 2,5 - 5mm. IDC 0,25-0,5mm² IDC terminals Male straight M8, 4-pole Connection cross section: 0.25.0.5 mm²
Technical Specifications
- Manufacturer part number (MPN)
- 7000-08345-0000000
- Model designation
- MSHL0-AC-T
- EAN / GTIN
- 4048879784696
- HS code
- 8536.69
- EU customs tariff number
- 85366990
- US customs tariff number
- 8536694020
- Weight
- 0.008 kg
- Country of origin
- DE
- Sales unit
- pcs
- Side 1 - Family construction form
- M8
- Side 1 - No. of poles
- 4
- Side 1 - Coding
- A
- Side 1 - Gender
- male
- Side 1 - Mounting method
- inserted, screwed
- Side 1 - Cable outlet
- straight
- Side 1 - Material
- PA
- Side 1 - Material contact
- Copper alloy
- Side 1 - Degree of protection (EN IEC 60529)
- IP67, IP65
- Side 2 - Mounting method
- Field-wireable
- Electrical data | Supply - Operating voltage AC
- 30 V
- Electrical data | Supply - Operating voltage DC
- 30 V
- Supply - Current operating per contact max.
- 4 A
- Installation - Connection cross section min.
- 0.25 mm²
- Installation - Connection cross section max.
- 0.5 mm²
- Installation | Connection - Connection
- Cut clamps IDC
- Installation | Connection - Mating cycles min.
- 100
- Installation | Connection - Wire insulation diameter min.
- 1.1 mm
- Installation | Connection - Wire insulation diameter max.
- 1.55 mm
- Electrical - Additional condition protection degree
- inserted, screwed
- Device protection | Electrical - Pollution Degree
- 3
- Electrical - Overvoltage category (EN 60950-1)
- II
- Electrical - Insulation resistance min.
- 100 mΩ
- Mechanical data | Material data - Material contact carrier
- TPU
- Mechanical data | Material data - Coating contact
- gold plated
- Mechanical data | Material data - Locking material
- Zinc die-casting
- Mechanical data | Material data - Coating locking
- Nickeled
- Mechanical data | Material data - Gasket
- NBR
- Mechanical data | Mounting data - Mounting method
- Hexagonal screw, Hexagonal nut
- Mechanical data | Mounting data - Looking techniques
- Schraubgewinde
- Mechanical data | Mounting data - Clamping range min.
- 2.5 mm
- Mechanical data | Mounting data - Clamping range max.
- 5 mm
- Climatic - Operating temperature min.
- -25 °C
- Climatic - Operating temperature max.
- 80 °C
- Important installation notes - Note on bending radius
- Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
- Important installation notes - Note on strain relief
- Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
- Conformity - Product standard
- EN/IEC 61076-2-104 (M8)
- ETIM-5.0
- EC002635
- ETIM-6.0
- EC002635
- ETIM-7.0
- EC002635
- ETIM-8.0
- EC002635
- ETIM-9.0
- EC002635
- ETIM-10.0
- EC002635
- Packaging unit
- 1
- ECLASS 14.0
- 27440106
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4048879784696
- SAP 1200237868
- Code 82185194
Product Documentation
