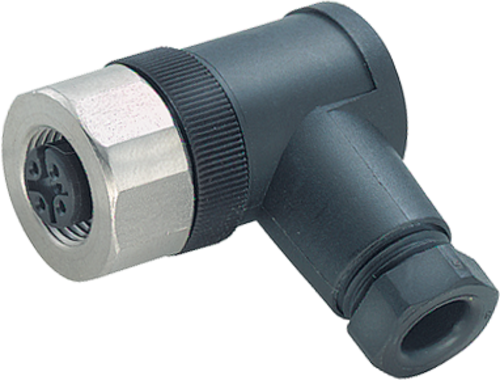

M12 female 90° A-cod. screw terminal V4A 5-POL., max. 0,75mm², 6 - 8mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 7004-13041-0000000 — M12 female 90° A-cod. screw terminal V4A 5-pol., max. 0,75mm², 6 - 8mm. V4A Female 90° M12, 5-pole Sealing range (cable Ø): 6.8 mm Stainless steel 1.4404 (V4A)
Technical Specifications
- Manufacturer part number (MPN)
- 7004-13041-0000000
- Model designation
- MSD-U9
- EAN / GTIN
- 4048879110921
- HS code
- 8536.69
- EU customs tariff number
- 85366990
- US customs tariff number
- 8536694020
- Weight
- 0.030 kg
- Country of origin
- DE
- Sales unit
- pcs
- Side 1 - Family construction form
- M12
- Side 1 - No. of poles
- 5
- Side 1 - Coding
- A
- Side 1 - Gender
- female
- Side 1 - Mounting method
- inserted, screwed
- Side 1 - Threaded hole
- M12 x 1
- Side 1 - Tightening torque
- 0.6 Nm
- Side 1 - Width across flats
- SW18
- Side 1 - Cable outlet
- angled
- Side 1 - Degree of protection (EN IEC 60529)
- IP67
- Side 2 - Mounting method
- Field-wireable
- Electrical data | Supply - Operating voltage DC max.
- 60 V
- Supply - Current operating per contact max.
- 4 A
- Supply - Current operating per contact max. (URc.)
- 3 A
- Diagnostics - Status indication LED
- No
- Installation - Rotation option
- 90° (4 outlet directions)
- Installation - Connection cross section max.
- 0.75 mm²
- Installation | Connection - Tightening torque
- 0.6 Nm
- Installation | Connection - Mounting set
- M12 x 1
- Installation | Connection - Width across flats
- SW18
- Electrical - Additional condition protection degree
- inserted, screwed
- Device protection | Electrical - Pollution Degree
- 3
- Electrical - Overvoltage category (EN 60664-1)
- III
- Electrical - Overvoltage category (EN 60950-1)
- II
- Device protection | Electrical - Rated surge voltage
- 0.8 kV
- Electrical - Material group (IEC 60664-1)
- III
- Mechanical data | Material data - housing
- PA
- Mechanical data | Material data - Locking material
- Stainless steel 1.4404 (V4A)
- Mechanical data | Mounting data - Mounting method
- inserted, screwed, Shaking protection
- Mechanical data | Mounting data - Clamping range min.
- 6 mm
- Mechanical data | Mounting data - Clamping range max.
- 8 mm
- Climatic - Operating temperature min.
- -40 °C
- Climatic - Operating temperature max.
- 85 °C
- Important installation notes - Note on bending radius
- Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
- Important installation notes - Note on strain relief
- Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
- ETIM-5.0
- EC002635
- ETIM-6.0
- EC002635
- ETIM-7.0
- EC002635
- ETIM-8.0
- EC002635
- ETIM-9.0
- EC002635
- ETIM-10.0
- EC002635
- Packaging unit
- 1
- ECLASS 14.0
- 27440106
