Product Description

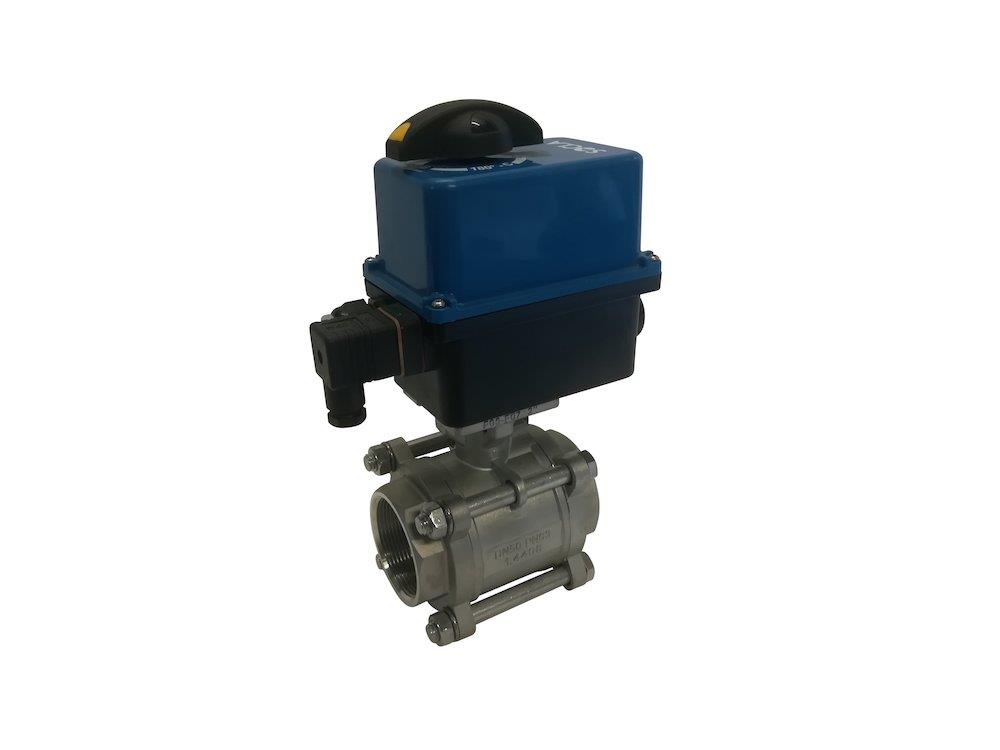

Modentic V-158 Ball Valve with Actuator 316/316/RTFE socket/socket electrical. Ball valves with electric actuator (Technique / Industrial valves / Ball valves). Principal data: thread 1 1", thread 2 1", pressure pn 63 bar. Supplied under manufacturer part number 820522, HS code 8481.80, country of origin France.
Technical Specifications
- Product type
- Ball valves with electric actuator Product group: Industrial valves Thread 1: 1" Thread 2: 1" Pressure PN: 63 bar Temperature max: 80 °C Temperature min: -20 °C Length built-in dimension: 136 mm DN dimension: 25 Thread type: BSP House: acid-resistant Ball / spindel: acid-resistant CF8M Liner / packing: RTFE = PTFE incl. 15% glass fibre Actuator: electric 12/48VDC Top flange: F03/F05-9 ISO top flange: Direct montage Passage: Full bore Breakaway torque: 20 nm Country of origin: France Customs tariff code (EU CN): 84818051 HS code: 8481.80 Manufacturer part number: 820522
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 820522
