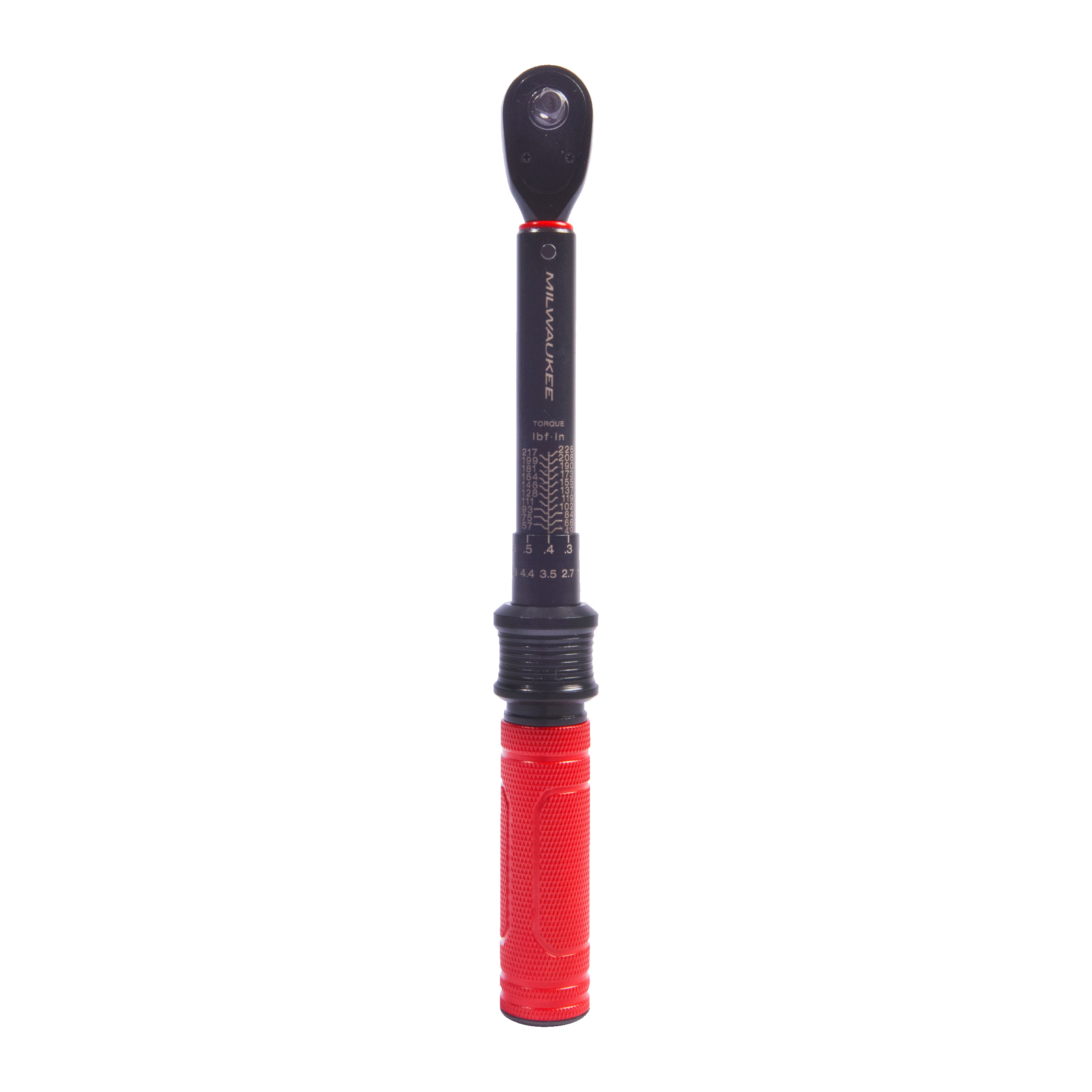

Milwaukee Click Torque Wrench 1/4" 5–25 Nm

Milwaukee 4932500823 click-type torque wrench with a 1/4" square drive and a 5–25 Nm setting range. An audible and tactile click signals when the preset torque is reached, and no reset is required between operations. The 90-tooth ratchet head gives a 4° arc swing for work in confined access. Torque is dialled on the dual-scale barrel and held by a ribbed locking ring that prevents accidental adjustment; the knurled handle provides a secure grip. The square drive conforms to ISO 1174-1 and DIN 3120.

Part number

4932500823

EAN / GTIN

4058546621254

Type

Click-type (preset) torque wrench

Drive size

1/4" square

Torque range

5–25 Nm

Accuracy

±3% clockwise, ±4% counter-clockwise

Ratchet mechanism

90 teeth

Arc swing

4°

Adjustment

Dual-scale barrel with ribbed locking ring

Reset between uses

Not required

Drive standard

ISO 1174-1, DIN 3120

Step size adjustment

25 Nm

Correcting variable consistent

No

With scale

No

Accuracy scale division

25 Nm

Electronic

No

With signal tone

No

Suitable for extension

No

With extension

No

Screwdriver model

No

Insulated

No

Isolation protection 1000 V

No

Country of origin

Taiwan

HS Code

8204.11

• EAN 4058546621254
• SAP 1201011096
• Code 84381981
