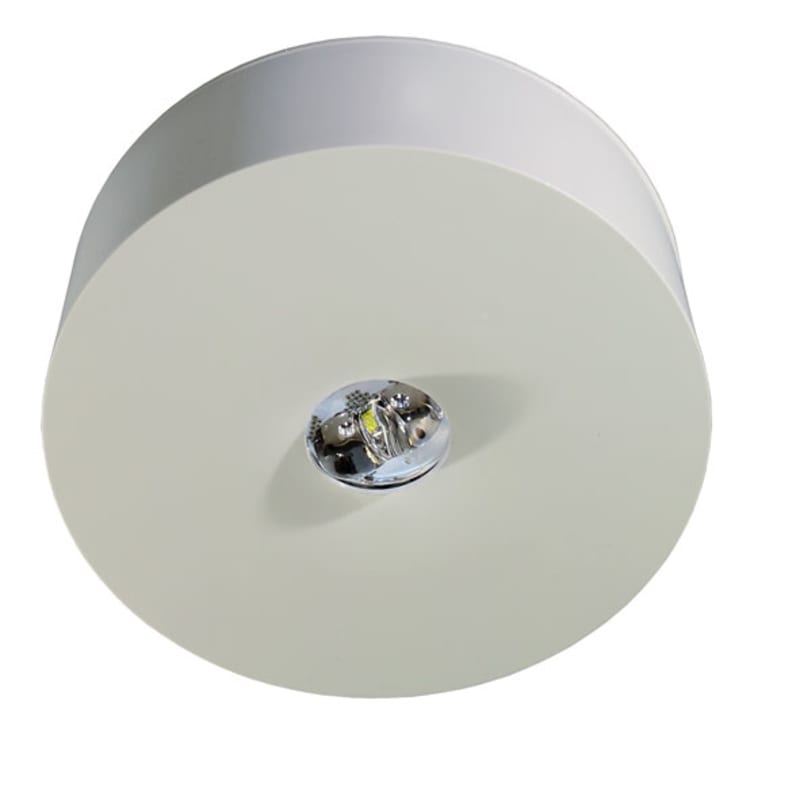

Melbye 6685031 Self-Test Escape-Route Luminaire Surface Corridor
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 6685031 is a surface-mounted LED emergency luminaire with automatic self-test, designed for corridor escape-route lighting. Individual NiMH battery provides 3 h nominal duration with a 24 m recognition distance for pictogram-free escape signage. The 110 x 110 x 50 mm white plastic housing carries a transparent cover, IP20 protection, class II insulation and 220–240 V AC supply with loop-through wiring on 2.5 mm² conductors.
Technical Specifications
- Manufacturer part number (MPN)
- 6685031
- EAN / GTIN
- 7070701229928
- Sales unit
- pcs
- Mounting method
- Ceiling surface mounting
- Function
- Escape route lighting
- With pictogram
- No
- Monitoring equipment
- Automatic self test
- With remote switch connection
- No
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- LED nominal current at constant current
- 0.05 mA
- Type of control gear
- Not required
- Light distributor
- None
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- -5–30 °C
- Recognition distance
- 24 m
- Nominal operation time
- 3 h
- Width
- 110 mm
- Height/depth
- 50 mm
- Length
- 110 mm
- Outer diameter
- 110 mm
- Built-in width
- 110 mm
- Built-in height/depth
- 50 mm
- Built-in length
- 110 mm
- Built-in diameter
- 110 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.60
Cross References
- EAN 7070701229928
- SAP 1200590175
- Code 83022262
