Melbye

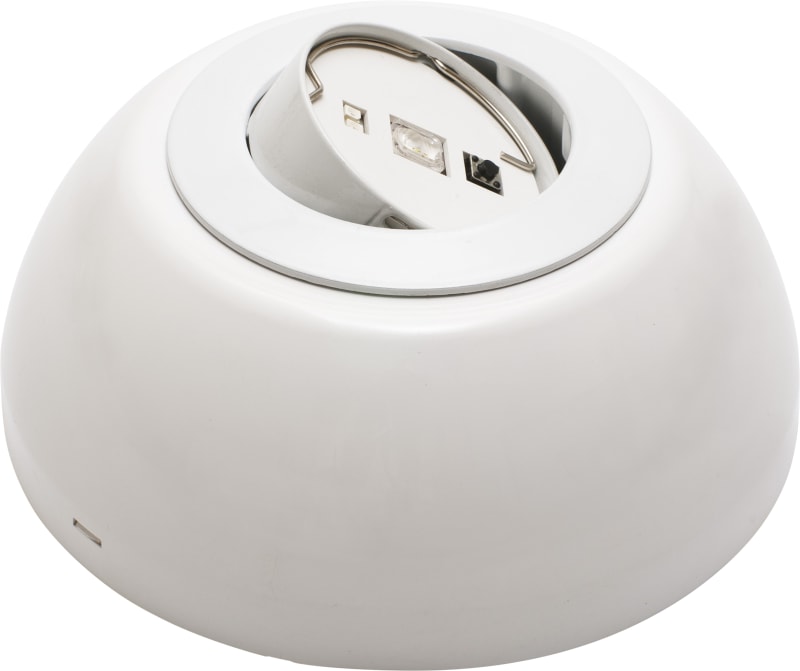

ERL L Emergency Luminaire with Self-Test
Part number6685030HS code9405.60
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 6685030 ERL L emergency escape-route luminaire with self-test; light distribution up to 12 m.
Technical Specifications
- Manufacturer part number (MPN)
- 6685030
- Sales unit
- pcs
- Package quantity
- 62 pcs
- Mounting method
- Ceiling surface mounting
- Function
- Escape route lighting
- With pictogram
- No
- Monitoring equipment
- Automatic self test
- With remote switch connection
- No
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Glass transparent
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- LED nominal current at constant current
- 0.05 mA
- Type of control gear
- Not required
- Light distributor
- None
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Degree of protection (IP)
- IP30
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 5–45 °C
- Recognition distance
- 22 m
- Nominal operation time
- 3 h
- Width
- 155 mm
- Height/depth
- 80 mm
- Length
- 155 mm
- Outer diameter
- 155 mm
- Built-in width
- 155 mm
- Built-in height/depth
- 80 mm
- Built-in length
- 155 mm
- Built-in diameter
- 155 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 9405.60
Cross References
- 7070701218571
Product Documentation
Document preview: ERL L Emergency Luminaire with Self-Test (6685030) — Specification sheet
