Melbye
Microled M Emergency Luminaire with Self-Test
Part number6685020HS code9405.60
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

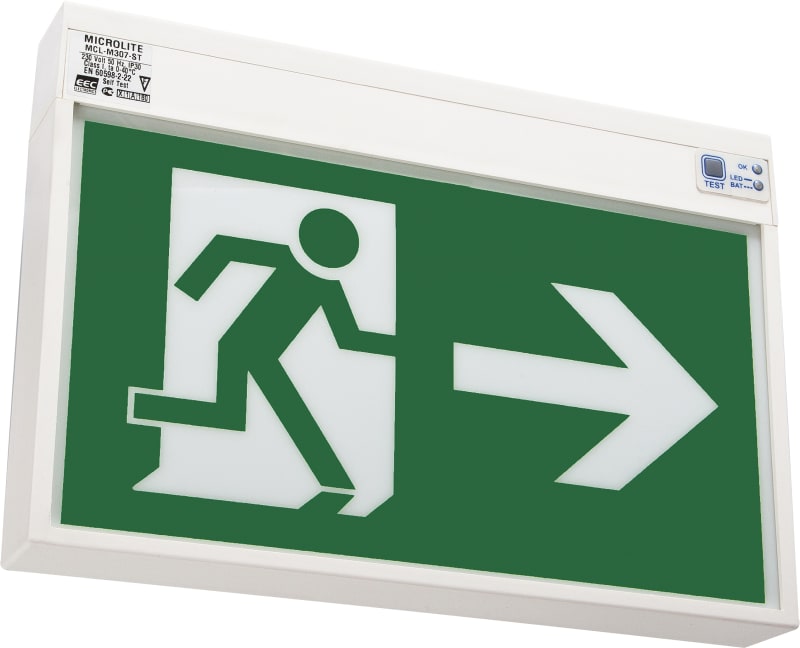

Melbye 6685020 Microled M emergency luminaire with self-test.
Technical Specifications
- Manufacturer part number (MPN)
- 6685020
- Sales unit
- pcs
- Package quantity
- 34 pcs
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Function
- Escape route signage
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single/double-sided
- With pictogram
- Yes
- Monitoring equipment
- Automatic self test
- With remote switch connection
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- LED nominal current at constant current
- 0.05 mA
- Type of control gear
- Not required
- Light distributor
- None
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Degree of protection (IP)
- IP30
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 0–40 °C
- Recognition distance
- 30 m
- Nominal operation time
- 3 h
- Width
- 290 mm
- Height/depth
- 40 mm
- Length
- 200 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 9405.60
Cross References
- 7070701218519
Product Documentation
Document preview: Microled M Emergency Luminaire with Self-Test (6685020) — Specification sheet
