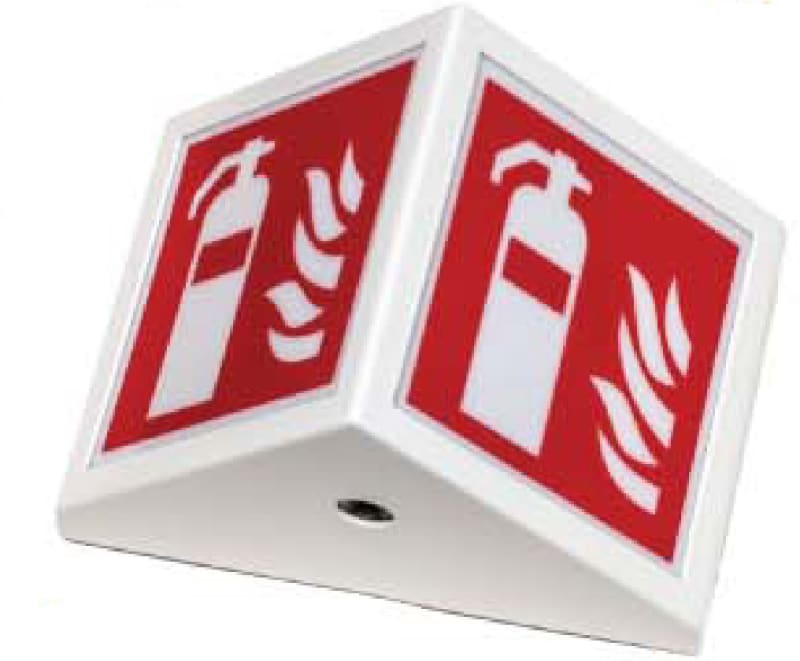

Melbye Rescueled Self-Test 3T Emergency Luminaire with 3-Pictogram
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 6685010 is an emergency luminaire for marking fire-hose points and providing downward escape-route lighting during mains failure. Fitted with automatic self-test, single/double-sided pictogram indication and a 3-hour NiMH battery reserve. LED source, 220-240 V AC, IP20 steel housing in white; suitable for loop-through wiring with 2.5 mm2 conductors.
Technical Specifications
- Manufacturer part number (MPN)
- 6685010
- HS code
- 8543.70
- Sales unit
- pcs
- Mounting method
- Wall surface mounted
- Function
- Escape route signage
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single/double-sided
- With pictogram
- Yes
- Monitoring equipment
- Automatic self test
- With remote switch connection
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiMH
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Steel
- Housing colour
- White
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- LED nominal current at constant current
- 0.05 mA
- Type of control gear
- Not required
- Light distributor
- None
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 0–40 °C
- Nominal operation time
- 3 h
- Width
- 145 mm
- Height/depth
- 125 mm
- Length
- 205 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 8543.70
Cross References
- 7070701218502
Product Documentation
More from Melbye
Melbye

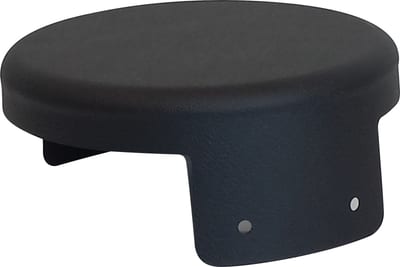

Melbye TH180 AUS Pole Cap Diameter Ø180 mm Black UV-Resistant
Melbye

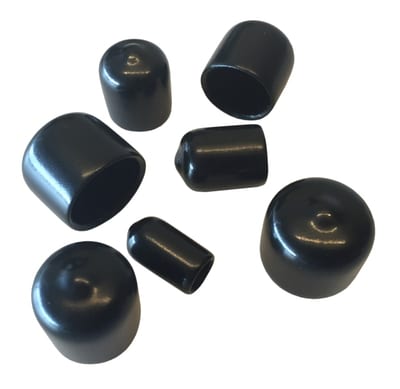

End Cap 10mm black, 100ST/pk
2821528
Melbye
Splice H. AKS 95 - 50
AKS ALCU 95-50MM3
Melbye

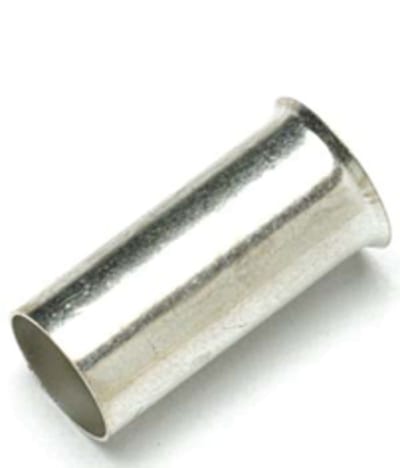

Melbye B1,5-12ET Uninsulated Wire-End Ferrule, 1.5 mm² / 12 mm
Melbye

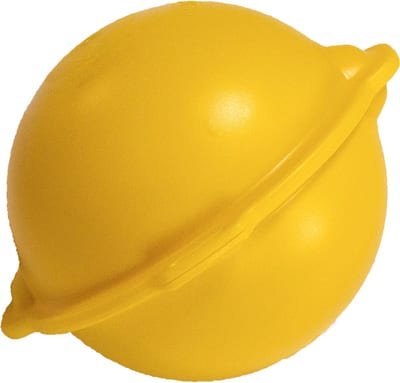

Melbye Ball Marker Gas Yellow 83 kHz
8053272
Melbye

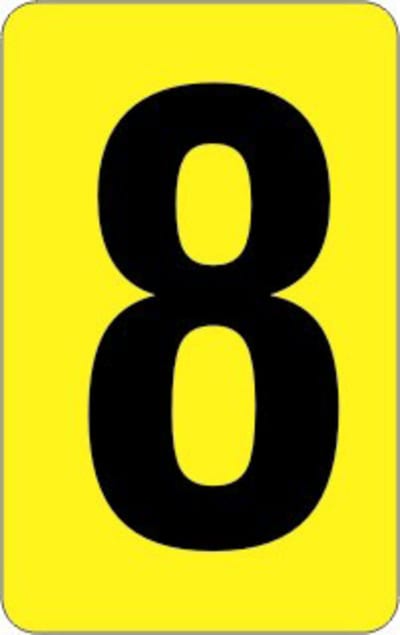

Foil characters 17 X 27mm Bindstrek
10407046
Melbye

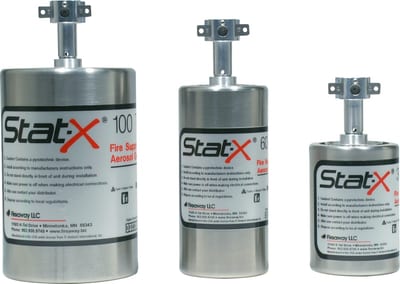

Aerosol FOR TERM.AKT.G 250T
15510
Melbye

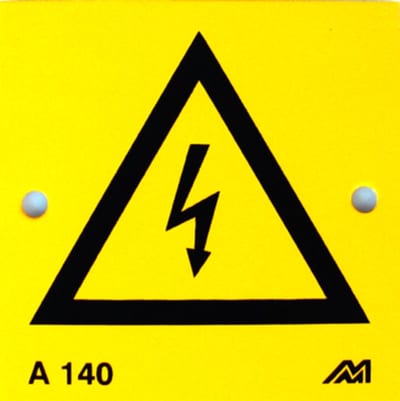

Melbye A140 Aluminium High-Voltage Warning Sign 45x45x0.7 mm
