Melbye AKP95 Aluminium-Copper Bimetallic Pin Socket — 95 mm² Al Conductor, 12.5 mm Cu Pin

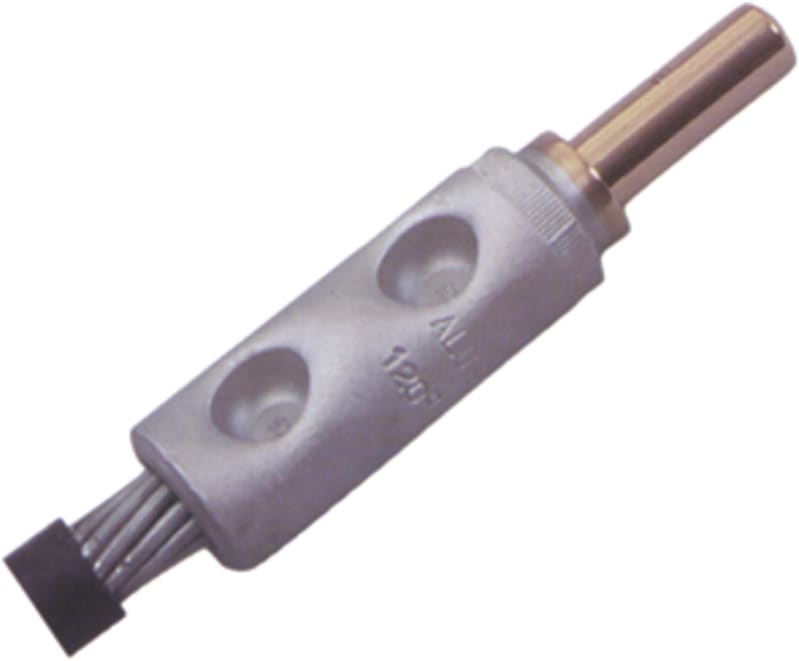

Melbye AKP95 — aluminium-copper (AlCu) bimetallic pin socket that terminates a 95 mm² (stranded) / 120 mm² (solid) aluminium conductor and presents a 12.5 mm solid copper pin for connection to copper-terminal apparatus such as screw or clamp terminals, isolators and circuit-breakers. The aluminium compression barrel is friction-welded to the copper pin from solid material, joining the dissimilar metals directly without a bimetal washer, and an internal oil-stop barrier separates the conductor from the pin. Two compression crimps are made on the aluminium barrel with the matching die; overall length 103 mm, strip length 60 mm. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors and is tested to IEC 61238-1. RoHS 2011/65/EU, REACH; CE marked.

Type

Aluminium-copper (AlCu) bimetallic pin socket

Function

Terminates an aluminium conductor and presents a solid copper pin for connection to copper-terminal apparatus

Conductor cross-section (aluminium)

95 mm² (stranded) / 120 mm² (solid)

Copper pin diameter

12.5 mm

Overall length

103 mm

Strip length

60 mm

Material

Friction-welded solid aluminium barrel and solid copper pin (bimetallic)

Barrier

Internal oil-stop centre stop

Crimp

Two compression crimps on the aluminium barrel

Conductor class

Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium

Compression connector standard

IEC 61238-1

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

AKP95

EAN / GTIN

7070701017921

Sales unit

pcs

Package quantity

24 pcs

HS code

8536.90

Longitudinal sealed

Yes

Suitable for Al/St-cables

No

Sleeve form

Short

Cross section form

Round/sector-shaped

Nominal cross section aluminium, SE

95 mm²

Nominal cross section aluminium, RM/SM

95 mm²

Country of origin

Spain

HS Code

8536.90
