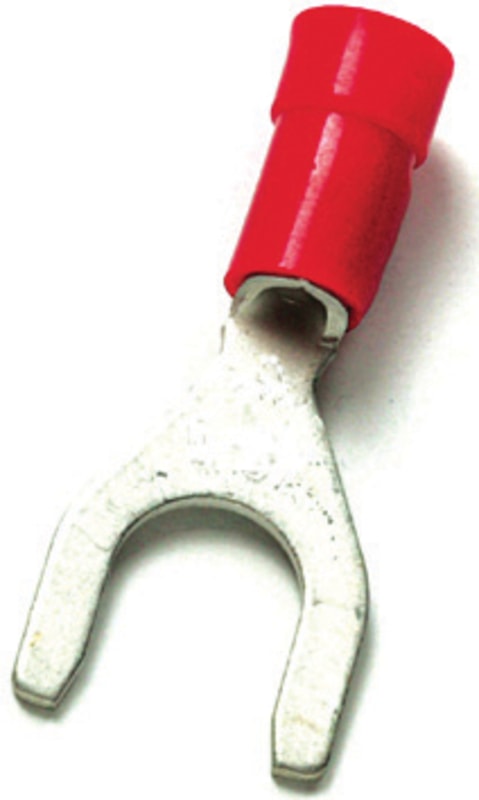

Melbye A1543G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M4 (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye A1543G — insulated flanged fork (spade) terminal for a 0.5–1.5 mm² copper conductor, for an M4 screw stud (fork slot Ø 4.3 mm). Tinned 99.95% copper barrel with a brazed neck in a halogen-free polycarbonate easy-entry sleeve, colour-coded red for the conductor range. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Insulated flanged fork (spade) terminal
- Conductor cross-section
- 0.5–1.5 mm²
- Stud size
- M4 (fork slot Ø 4.3 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- Halogen-free polycarbonate (PC) easy-entry sleeve
- Insulation colour code
- Red
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- A (pre-insulated)
- Manufacturer part number (MPN)
- A1543GEAN / GTIN: 7070701016641
- Sales unit
- pcs
- HS code
- 8536.90
- Surface protection
- Tinned
- Total length
- 22.2 mm
- Max. current (Imax)
- 10 A
- Flange shape
- Fork shape
- For pull protected connections
- No
- Reel/roll packaging
- No
- Colour insulation
- Red
- Bolt dimension (metric)
- 4
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- According to DIN
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701016641
- SAP 1000068216
- Code 8745712
Product Documentation
More from Melbye
Melbye
Melbye A25-16ET Insulated Wire-End Ferrule, 25 mm² / 16 mm (Brown)
Melbye
Heat detector MVD 230/9 RF
6200911
Melbye
Punch Pliers FOR Steelstendere Ø=30X0,7mm
1200001034
Melbye
Fibre pigtail SM SC/APC 1.0M 12PK (6977463)
Melbye
RING Terminal ISO A4685R Yellow
Melbye
Patch Cord SPX 1XSC/UPC-LC/UPC 3M
6977173
Melbye
FUSE Catridge 10,3X38/6A
K215128J
Melbye
Melbye KRF70-12 Non-Insulated Copper Tube Cable Lug, 70 mm² M12
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A1543G?
- A1543G can be ordered from cballast.com as a Melbye catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Melbye product?
- The manufacturer part number is A1543G.
- What is the HS code for A1543G?
- The customs tariff (HS) code for A1543G is 8536.90.
- Who manufactures A1543G?
- A1543G is a Melbye product in the Electrical Components range.
- Is a datasheet available for A1543G?
- Yes — the A1543G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A1543G?
- The minimum order quantity is 1.
- Is A1543G available?
- Yes — A1543G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
