Melbye
Screw Cable Lug 1-36KV 185-400X16
Part number1-36kV L185-400x16 Al/CuEAN / GTIN7070701349930HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

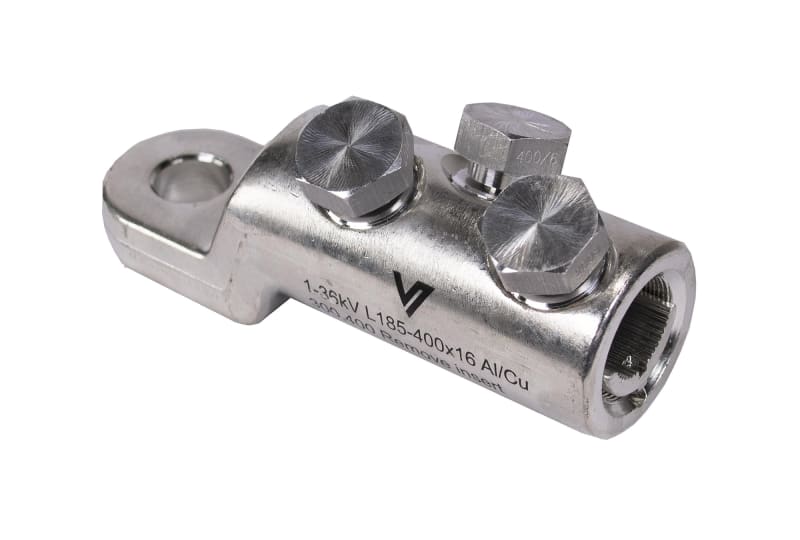

Melbye 1-36kV L185-400x16 Al/Cu Screw Cable Lug 1-36kV.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV L185-400x16 Al/Cu
- EAN / GTIN
- 7070701349930
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Surface protection
- Tinned
- Conductor material
- Aluminium/copper
- With shear-off head
- Yes
- Bolt dimension (metric)
- 16
- Nominal cross section copper, RM
- 185–400 mm²
- Nominal cross section copper, RE
- 185–400 mm²
- Nominal cross section copper, SM
- 185–300 mm²
- Nominal cross section aluminium, RM
- 185–400 mm²
- Nominal cross section aluminium, RE
- 185–400 mm²
- Nominal cross section aluminium, SM
- 185–300 mm²
- Nominal cross section aluminium, SE
- 185–240 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 350 kcmil
- Max. AWG-size
- 600 kcmil
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349930
- SAP 1200524241
- Code 82675950
Product Documentation
Document preview: Screw Cable Lug 1-36KV 185-400X16 (1-36KV L185-400X16 Al/Cu) — Specification sheet
