Melbye

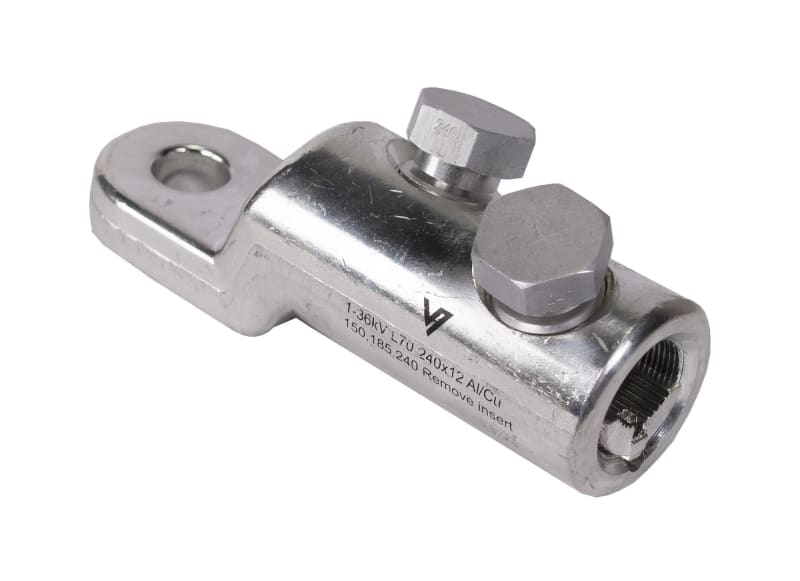

Screw Cable Lug 1-36KV 70-240X12
Part number1-36kV L70-240x12 Al/CuEAN / GTIN7070701349916HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 1-36kV L70-240x12 Al/Cu Screw Cable Lug 1-36kV.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV L70-240x12 Al/Cu
- EAN / GTIN
- 7070701349916
- Sales unit
- pcs
- Package quantity
- 48 pcs
- Surface protection
- Tinned
- Conductor material
- Aluminium/copper
- With shear-off head
- Yes
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 70–240 mm²
- Nominal cross section copper, RE
- 70–240 mm²
- Nominal cross section copper, SM
- 70–185 mm²
- Nominal cross section aluminium, RM
- 70–240 mm²
- Nominal cross section aluminium, RE
- 70–240 mm²
- Nominal cross section aluminium, SM
- 70–185 mm²
- Nominal cross section aluminium, SE
- 70–150 mm²
- Material conductor
- Aluminium/copper
- Max. AWG-size
- 500 kcmil
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349916
- SAP 1200524251
- Code 82675933
Product Documentation
Document preview: Screw Cable Lug 1-36KV 70-240X12 (1-36KV L70-240X12 Al/Cu) — Specification sheet
More from Melbye
Melbye
Melbye A2,5-12ET Insulated Wire-End Ferrule, 2.5 mm² / 12 mm (Blue)
Melbye
Splice H. 50 11,0 - 14,5
L=40MM
Melbye
Melbye A2585R Insulated Ring Terminal, 2.5 mm² M8 (Blue)
Melbye
WAY OUT Battery 3,2V 1,6AH LIFEPO4
6685078
Melbye

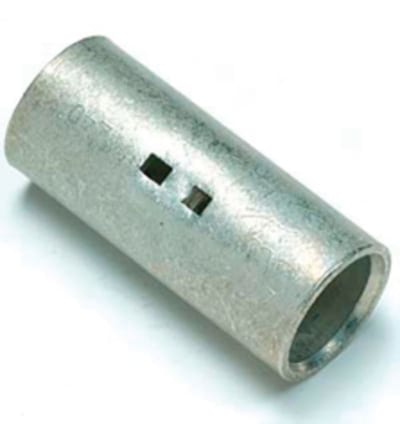

Splice H. 95 15,0 - 20,0
