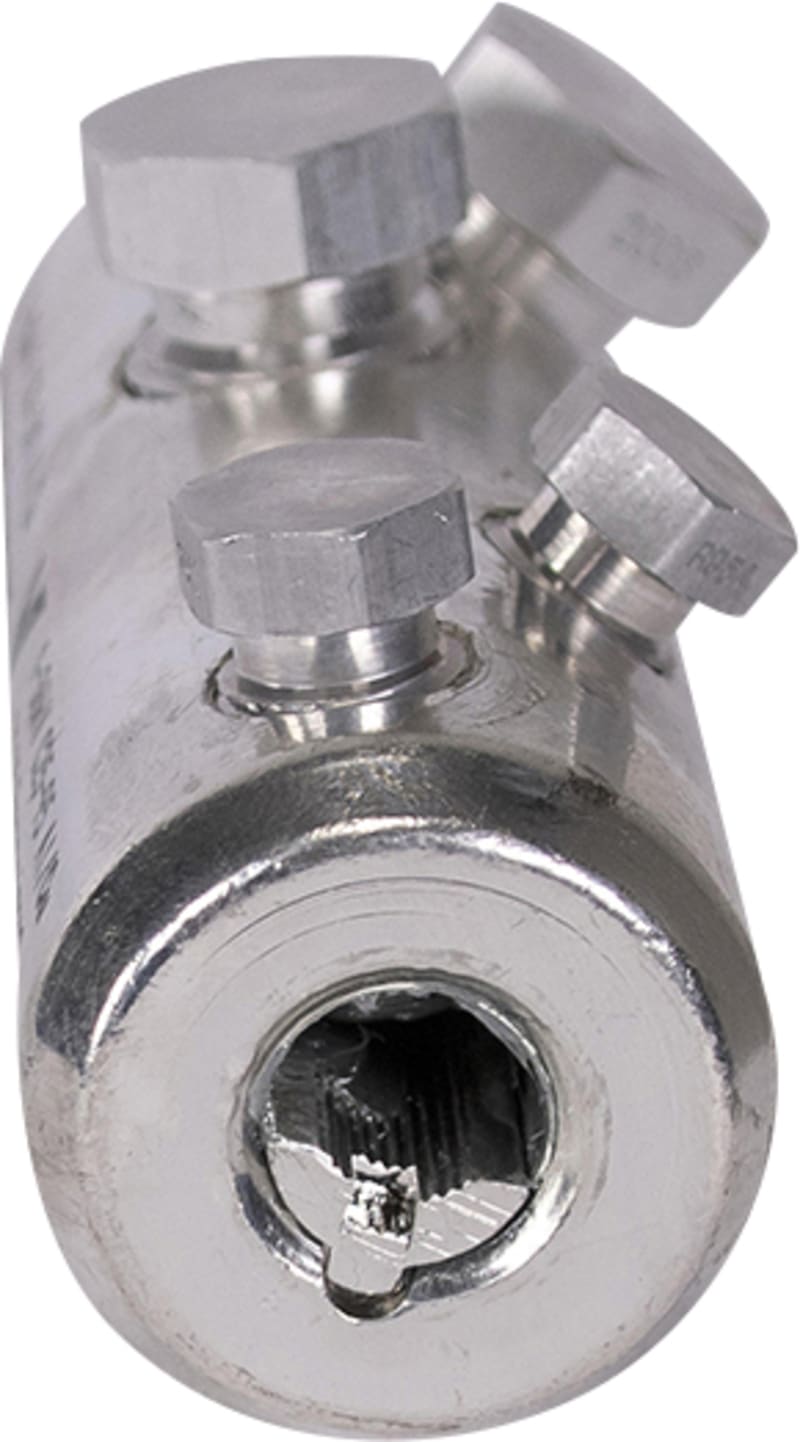

Melbye Screw Joint Sleeve 1-36 kV C70-240/25-95 Al/Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Tinned screw joint sleeve for main conductors 70-240 mm2 with 25-95 mm2 branch, aluminium or copper, rated up to 36 kV. Four-screw construction with oil-stop centre bar; IP00 and uninsulated, requiring a separate insulation kit. Suitable for medium-voltage cable jointing in industrial and utility networks.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV C70-240/25-95 Al/Cu
- EAN / GTIN
- 7070701349886
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Surface protection
- Tinned
- Number of screws
- 4
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Voltage level
- Up to 36 kV
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 70–240 mm²
- Nominal cross section copper, RE
- 70–240 mm²
- Nominal cross section copper, SM
- 70–185 mm²
- Nominal cross section aluminium, RM
- 70–240 mm²
- Nominal cross section aluminium, RE
- 70–240 mm²
- Nominal cross section aluminium, SM
- 70–185 mm²
- Nominal cross section aluminium, SE
- 70–185 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349886
- SAP 1200524248
- Code 82675938
Product Documentation
More from Melbye
Melbye
Battery 3,6V 1500MAH for FireLED
6685088
Melbye
Melbye ADSS 144F G652D Fibre Cable, 70 m Span, Black HDPE
1082991
Melbye
Tall - 1,pack, à 10 pcs
10407438
Melbye

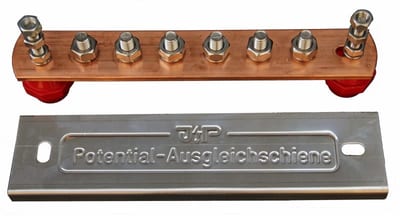

Main Earth Rail HJSK40/220/5
1262119
Melbye

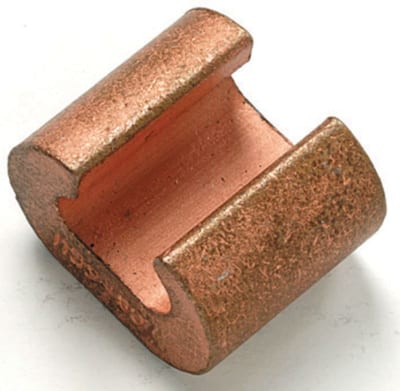

C-Compression Clamp 95-120/50-70
