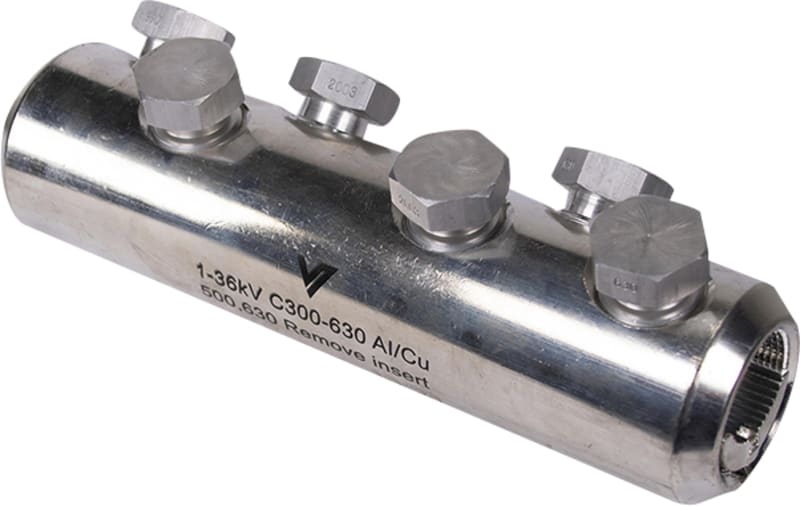

Melbye Screw Joint Sleeve 1-36 kV 300-630 mm² Al/Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Screw-type through joint sleeve for medium voltage cables up to 36 kV, accepting aluminium or copper conductors from 300 to 630 mm² depending on class RM/RE and 300 to 500 mm² for SM. The tinned sleeve carries six shear-head screws and an oil-stop centre bar, and is supplied uninsulated for use with a separate insulation kit. Supplied in packs of 16.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV C300-630 Al/Cu
- EAN / GTIN
- 7070701349879
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Surface protection
- Tinned
- Number of screws
- 6
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Voltage level
- Up to 36 kV
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 300–630 mm²
- Nominal cross section copper, RE
- 300–630 mm²
- Nominal cross section copper, SM
- 300–500 mm²
- Nominal cross section aluminium, RM
- 300–630 mm²
- Nominal cross section aluminium, RE
- 300–630 mm²
- Nominal cross section aluminium, SM
- 300–500 mm²
- Nominal cross section aluminium, SE
- 300–400 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349879
- SAP 1200524247
- Code 82675952
Product Documentation
More from Melbye
Melbye
Screwdriver set ratchet
8802587
Melbye
Battery for KM/KS luminaire
6685083
Melbye

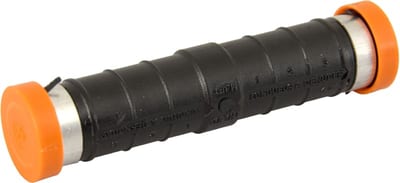

Insulated Splice Sleeve T50-50
MJPT50
Melbye

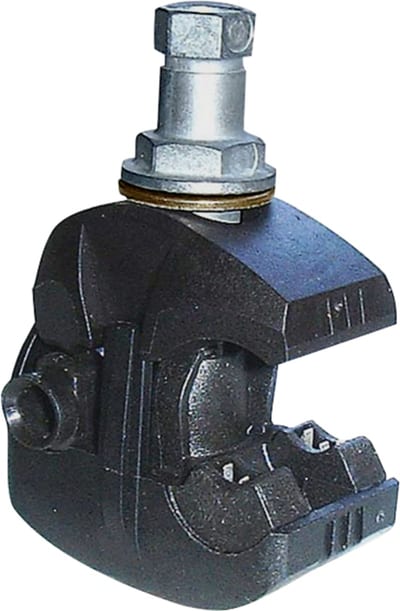

BRANCH KL. Insulated 1,5-6/10-95
K439
Melbye
Melbye 6-Way Multi-Duct Clipless for Micro-Duct Bundles
2822011
Melbye
Melbye 9-Way Multi-Duct Clipless for Micro-Duct Bundles
2822012
Melbye

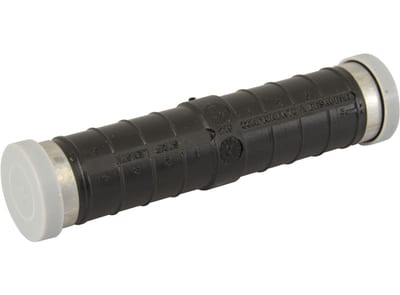

Insulated Splice Sleeve T95-95
