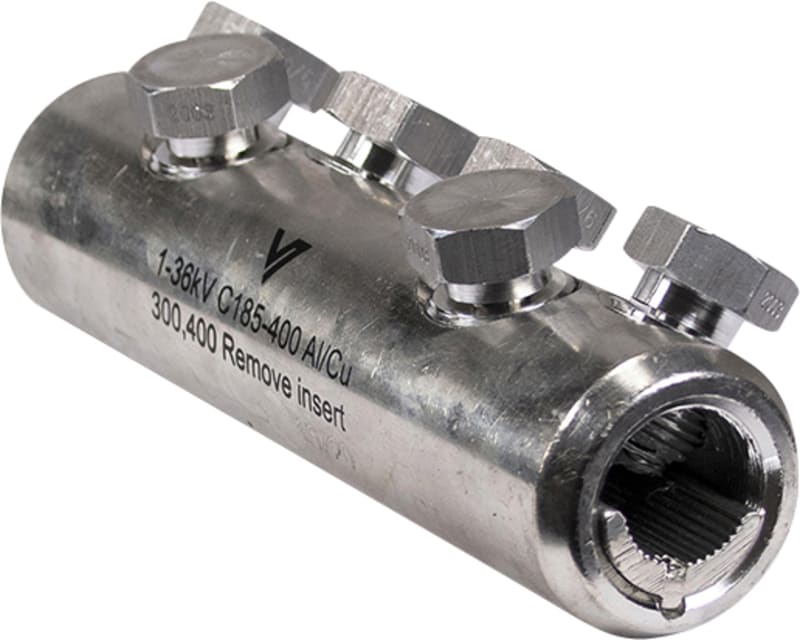

Melbye 1-36kV C185-400 Al/Cu Screw Splice Sleeve 185-400 mm²
Part number1-36kV C185-400 Al/CuEAN / GTIN7070701349862HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 1-36kV C185-400 Al/Cu is a screw-type splice sleeve for medium-voltage cable joints up to 36 kV, accepting aluminium and copper conductors from 185 to 400 mm² (RM and RE). The tinned body has six shear-head screws and an integrated oil-stop centre bar. Supplied as a 28-piece pack; degree of protection IP00.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV C185-400 Al/Cu
- EAN / GTIN
- 7070701349862
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Surface protection
- Tinned
- Number of screws
- 6
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Voltage level
- Up to 36 kV
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 185–400 mm²
- Nominal cross section copper, RE
- 185–400 mm²
- Nominal cross section copper, SM
- 185–300 mm²
- Nominal cross section aluminium, RM
- 185–400 mm²
- Nominal cross section aluminium, RE
- 185–400 mm²
- Nominal cross section aluminium, SM
- 185–300 mm²
- Nominal cross section aluminium, SE
- 185–240 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349862
- SAP 1200524246
- Code 82675942
Product Documentation
Document preview: Melbye 1-36kV C185-400 Al/Cu Screw Splice Sleeve 185-400 mm² — Specification sheet
More from Melbye
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1-36kV C185-400 Al/Cu?
- 1-36kV C185-400 Al/Cu can be ordered from cballast.com as a Melbye catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Melbye product?
- The manufacturer part number is 1-36kV C185-400 Al/Cu.
- What is the HS code for 1-36kV C185-400 Al/Cu?
- The customs tariff (HS) code for 1-36kV C185-400 Al/Cu is 8536.90.
- Who manufactures 1-36kV C185-400 Al/Cu?
- 1-36kV C185-400 Al/Cu is a Melbye product in the Electrical Components range.
- Is a datasheet available for 1-36kV C185-400 Al/Cu?
- Yes — the 1-36kV C185-400 Al/Cu datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1-36kV C185-400 Al/Cu?
- The minimum order quantity is 1.
- Is 1-36kV C185-400 Al/Cu available?
- Yes — 1-36kV C185-400 Al/Cu is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
