Melbye ADSS 288F G652D Fibre Cable, 70 m Span, Black HDPE
Pricing
Request a quote
We reply within 24 hours
Product Description

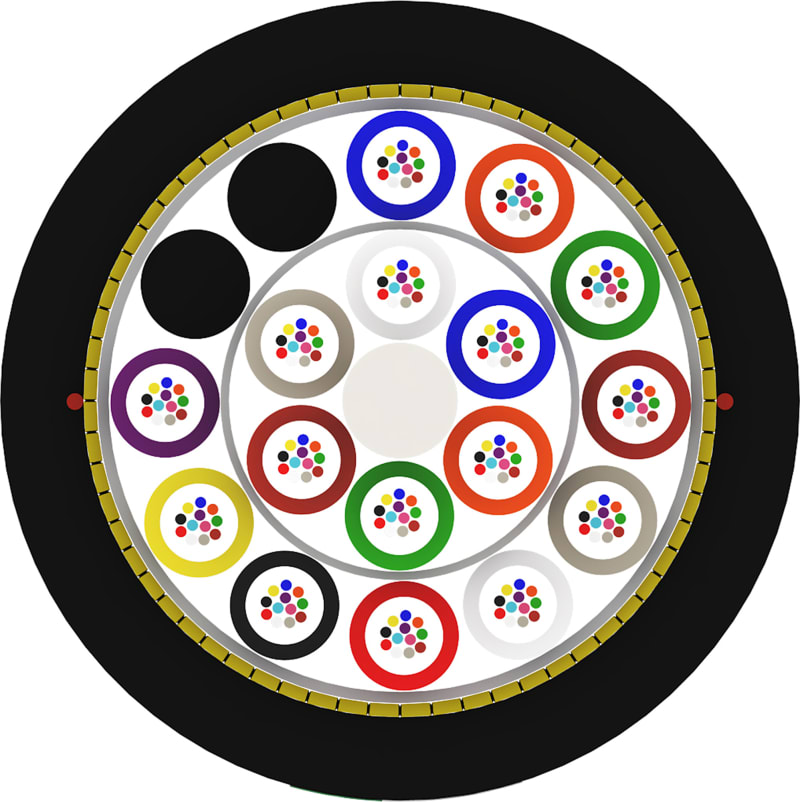

Melbye 1082993 is a 288-fibre ADSS (all-dielectric self-supporting) optical cable for aerial installation with a 70 m span between poles. The G652D single-mode fibres are housed in stranded loose tubes with 12 fibres per tube. The outer sheath is black polyethylene with a nominal diameter of 16.8 mm, UV resistant, and suitable for underground as well as aerial installation.
Technical Specifications
- Manufacturer part number (MPN)
- 1082993
- EAN / GTIN
- 7070701311593
- Sales unit
- m
- Package quantity
- 4000 m
- With rodent protection
- No
- Specification material outer sheath
- Polyethylene (PE)
- Longitudinal water blocking cable
- Yes
- Radial water blocking cable
- Yes
- Reaction-to-fire according to EN 13501-6
- Class: Fca
- Halogen free according to EN 60754-1/2
- Yes
- Low smoke (according to EN 61034-2)
- No
- Oil resistant according to EN IEC 60811-404
- No
- Outer diameter approximate
- 16.8 mm
- Suitable for underground installation
- Yes
- Blow in
- No
- Cable geometry
- Round
- Cable width approximate
- 16.8 mm
- Cable height approximate
- 16.8 mm
- UV resistant
- Yes
- Fibre type
- Single mode 9/125
- Weight
- 200 kg/km
- Flame retardant
- No
- Number of fibres
- 288
- With strain relief
- Yes
- Armouring
- Yes
- Resistant to chemicals
- No
- Circuit integrity
- No
- Colour outer sheath
- Black
- Category
- OS2
- Material outer sheath
- Polyolefin
- Type of tube
- Stranded loose tube
- Number of fibres per tube
- 12
- Country of origin
- India
Standards & Compliance
- HS Code
- 8544.70
Cross References
- EAN 7070701311593
- SAP 1200447357
- Code 82502898
