Maxeta Universal Channel Triple Socket 3-Way with Earth Pure White
Pricing
Request a quote
We reply within 24 hours
Product Description

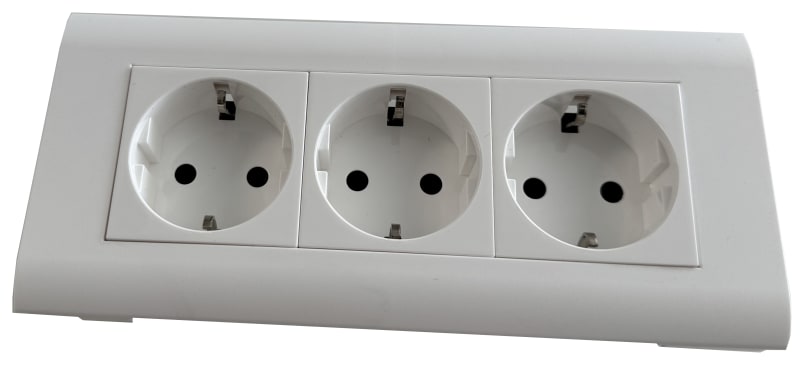

Maxeta 1286194 is a triple socket outlet with earth conductor and a pure white finish for installation in wall duct. Each of the three CEE 7/3 (type F) positions is rated 16 A / 250 V AC with enhanced contact protection and screw terminals. The thermoplastic housing is finished in RAL 9003 with a glossy face and IK04 impact rating; suitable for IP20 environments.
Technical Specifications
- Manufacturer part number (MPN)
- 1286194
- HS code
- 8536.90
- Sales unit
- pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Wall duct
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 3
- Lockable
- No
- With hinged lid
- No
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With enhanced contact protection
- Yes
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- Imprint/indication
- None
- RAL-number (similar)
- 9003
- Impact strength
- IK04
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 162 mm
- Device height
- 45 mm
- Device depth
- 45 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- 7070682031862
Product Documentation
