Loose flange stainless - 25, 40.0bar, 33,7mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Loose flange stainless. Loose flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 25, pressure pn 40.0 bar, for pipes with outer diameter 33.7 mm. Supplied under manufacturer part number GL11083560, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Loose flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 25
- Pressure PN
- 40.0 bar
- For pipes with outer diameter
- 33.7 mm
- Number of bolt holes
- 4 pcs
- Bolt dimension
- 12 mm
- Bolt hole diameter
- 14 mm
- Bolt circle diameter
- 85 mm
- Flange thickness
- 16 mm
- Diameter
- 115 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 02A
- Material certificate
- EN 10204 3.1
- Weight
- 1.08 kg
- Inner diameter
- 38 mm
- E dimension
- 5 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0030 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GL11083560
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GL11083560
Product Documentation
More from Generic
Generic
DIN 6912 Low-Head Socket Cap Screw electro-galvanised 8.8 - M4 x 10 mm, 500 pcs
6912040102
Generic
O-ring NBR (nitrile) - 32mm, Shore 70, 3,50mm
250917
Generic
Hygienic Union Weld Liner SMS 1145, DN50, 316L
DS25344690
Generic
Nutring N9 U-seal CH95 Nitrile - 110mm, 85mm, 12mm
186170
Generic

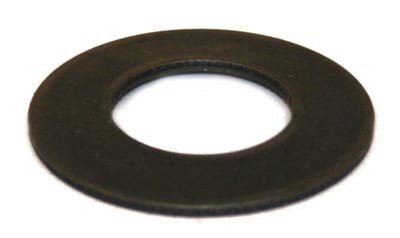

DIN 2093 Disc Spring black - 40mm, 41mm, 80mm, 10PCS, 5mm
2093405001
Generic

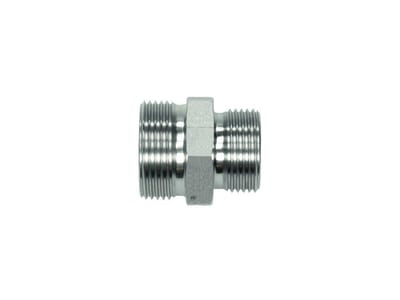

PH GR Reducer Connector complete acid-resistant light - 18mm, 12mm, 400bar
GRV-L-18/12
Generic
O-ring FKM (Viton) - 2.9mm, Shore 75 ± 5, 1,20mm
384495
Generic

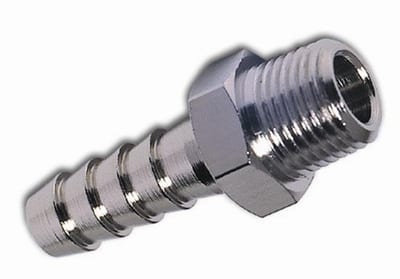

Hose nozzle brass, nickel-plated nipple BSPT - 18mm, 3/8"
