Loose flange stainless - 15, 40.0bar, 21,3mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Loose flange stainless. Loose flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 15, pressure pn 40.0 bar, for pipes with outer diameter 21.3 mm. Supplied under manufacturer part number GL11082550, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Loose flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 15
- Pressure PN
- 40.0 bar
- For pipes with outer diameter
- 21.3 mm
- Number of bolt holes
- 4 pcs
- Bolt dimension
- 12 mm
- Bolt hole diameter
- 14 mm
- Bolt circle diameter
- 65 mm
- Flange thickness
- 14 mm
- Diameter
- 95 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 02A
- Material certificate
- EN 10204 3.1
- Weight
- 0.65 kg
- Inner diameter
- 25 mm
- E dimension
- 4 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0018 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GL11082550
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GL11082550
Product Documentation
More from Generic
Generic
Brass Rod brass square CW614N/MS58 - 40mm, 3000mm, 40mm, 13.6KG/m
1163659
Generic
DIN 912 Hex Socket Screw cylindrical head black 12.9 - M2 x 3mm, 500 pcs
12912020031
Generic
AMNB Scraper ring CH1450 NBR/steel - 52mm, 42mm, 5/7mm
276951
Generic
O-ring FKM (Viton) - 29.51mm, Shore 75 ± 5, 5,33mm
295531
Generic
Hygienic Clamp Gasket DS/SMS, K119, EPDM
2050000040788
Generic

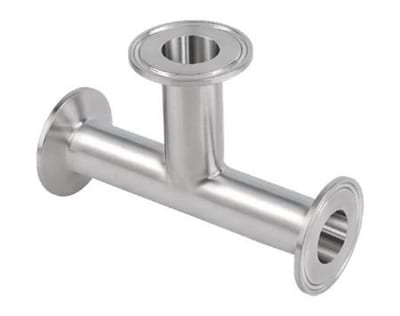

Pharma T-Piece - 25.4mm, 25.4mm - 10514600
PT14252940
Generic

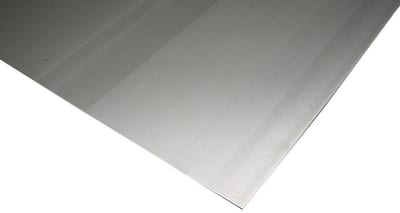

Steel Sheet electro-galvanised DC01 ZE 25/25 - 2000 x 1000 x 1 mm
